Name: 300V M19 8 Pin Waterproof Connector Push Locking Data Molded Cable Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

홈 제품 소개 내수 케이블 연결기

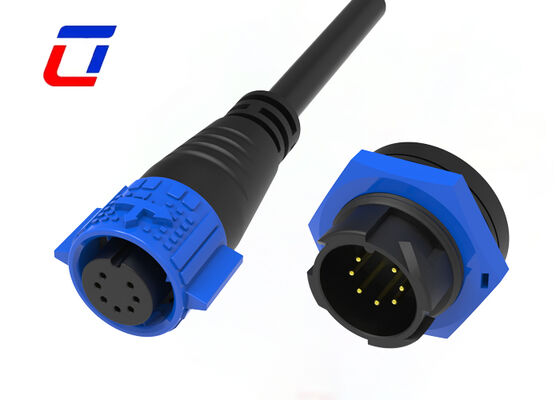

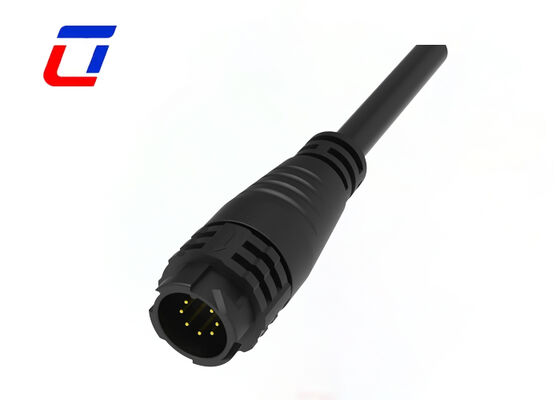

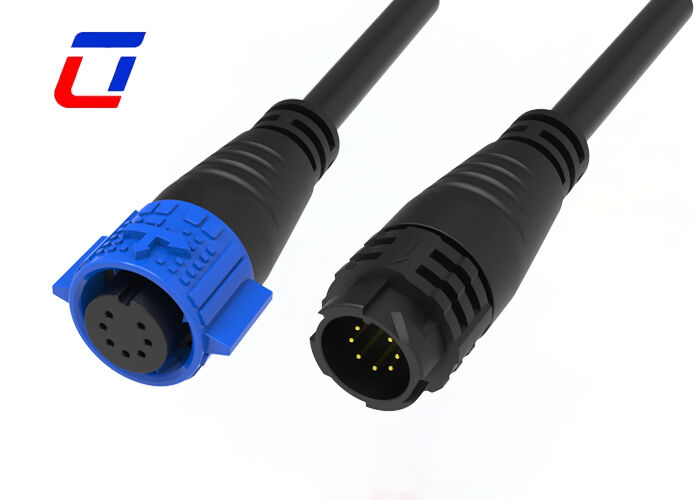

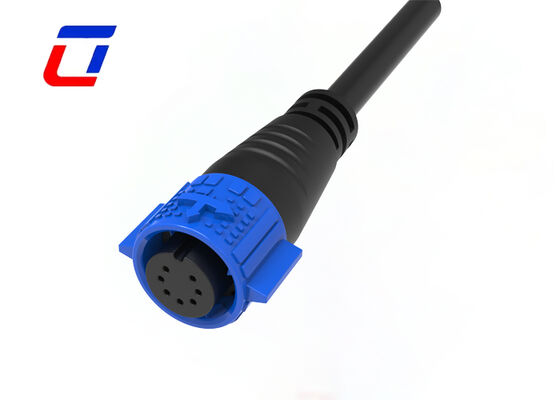

300V M19 8 Pin Waterproof Connector Push Locking Data Molded Cable Connector

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Ulinkcon
인증:	CE/Rohs/TUV/UL
모델 번호:	M19

결제 및 배송 조건:

최소 주문 수량:	협상
가격:	협상 가능
포장 세부 사항:	1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라
배달 시간:	3~6근무일
지불 조건:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
공급 능력:	매달 100000 쌍

접촉

상세 제품 설명

핀:	8핀 데이터 커넥터	명함 전류/전압:	10A/300V
재료:	나일론	성별:	남성에서 여성으로
작동 온도:	-40℃-+105℃	난연성 등급:	UL 94-V0
강조하다:	8 pin waterproof connector , M19 push lock cable connector , 300V molded waterproof connector

8 Pin Cable Connector M19 Male Female Quick Lock Waterproof Connectors

Quick Description

Rated at 300V, this M19 8-pin molded cable waterproof connector is engineered for industrial data transmission. Designed with integrated molded cable and thread-free Push Lock self-locking mechanism, it combines 8 isolated pins for multi-channel data and auxiliary low-power connection. Rated IP67, it stands up to damp workshops and open-air installation, while molded cable structure greatly improves bending and pull resistance for long-distance wiring.

300V Voltage Rating for Enhanced Electrical Safety
Thickened insulating body supports 300V rated voltage, resisting transient voltage surge and fluctuation on site. It effectively avoids insulation breakdown and electric leakage to satisfy industrial electrical safety standards.
Integral Molded Cable for Superior Strain Relief
One-piece injection molding removes gaps between plug and wire. The reinforced cable root tolerates frequent pulling and bending without crack or water ingress, solving common loose wire issues of split-type connectors.
8 Isolated Pins for Stable Crosstalk-Free Data Transfer
Eight separately partitioned pins transmit sensor data and control signals independently to reduce signal interference and data loss. One connector consolidates multiple data lines to simplify device external port layout.
Tool-Free Push Lock Self-Locking Connection
Automatic locking upon insertion and easy release by pressing, no screw thread or auxiliary tools needed. Constant buckle clamping force prevents loose connection caused by mechanical vibration and cable tension.
IP67 Sealing for All-Round Environmental Protection
High-elastic silicone gasket ensures full tight seal after locking, blocking rain, dust, dew and slight oil dirt to keep inner pins intact under harsh working surroundings.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	8Pin
Current Rating	10A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 1.5mm²

Design Sketch

300V M19 8 Pin Waterproof Connector Push Locking Data Molded Cable Connector 1

FAQ

1. Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

2. Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
