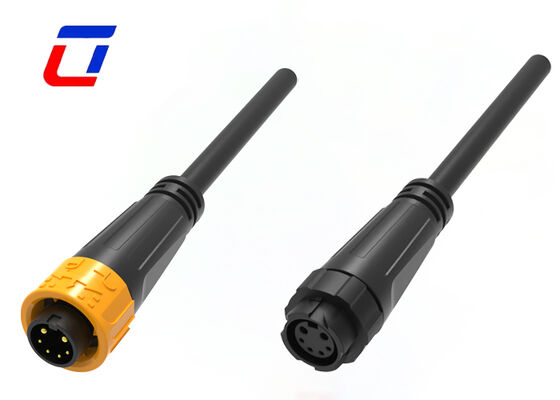

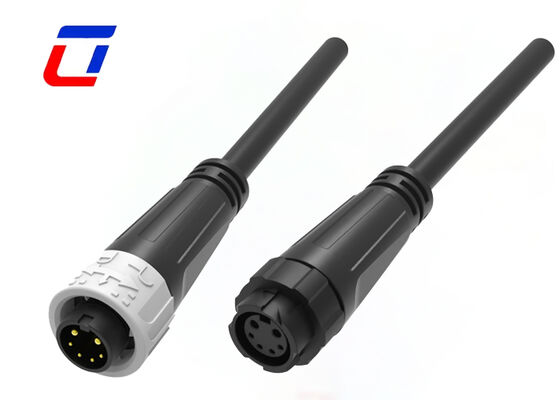

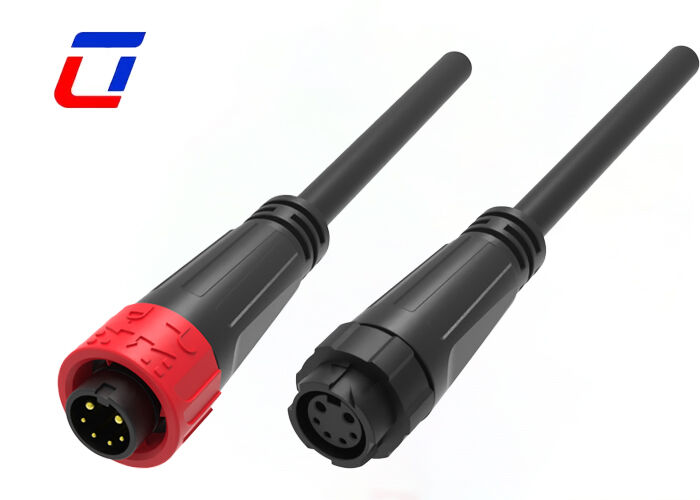

Name: UL94-V0 M16 2+4 Multi Pin Male Female Connector Push Locking IP67 Wire Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

홈 제품 소개 내수 케이블 연결기

UL94-V0 M16 2+4 Multi Pin Male Female Connector Push Locking IP67 Wire Connector

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Ulinkcon
인증:	CE/Rohs/TUV/UL
모델 번호:	M16

결제 및 배송 조건:

최소 주문 수량:	협상
가격:	협상 가능
포장 세부 사항:	1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라
배달 시간:	3~6근무일
지불 조건:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
공급 능력:	매달 100000 쌍

접촉

상세 제품 설명

핀:	2+4핀 전원 및 데이터	유형:	방수 커넥터
방수 수준:	IP67	재료:	PA66,UL94-V0
접촉 재료:	황동 금도금	작동 온도:	-40℃-+105℃
강조하다:	UL94-V0 waterproof M16 connector , IP67 locking wire connector , M16 multi pin male female connector

M16 2+4 Pin Wire Connector ODM Industrial Power And Signal Plug

The UL94-V0 certified M16 2+4 multi-pin male and female wire connector is a fire-resistant integrated connection solution for combined power and signal transmission. Adopting a professional 2+4 pin grouping design, it realizes independent power supply and multi-channel signal transmission in one compact unit. Equipped with advanced tool-free Push Lock self-locking structure and IP67 waterproof performance, this mini M16 connector delivers superior fire safety, stable conductivity and strong environmental adaptability for industrial and outdoor electrical applications.

IP67 Quick Lock Connectors Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Features

UL94-V0 Highest Flame Retardant Rating for Enhanced Safety: The connector housing is manufactured with UL94-V0 fire-retardant material, featuring self-extinguishing and flame-resistant properties. It effectively prevents flame spreading caused by short circuit or overload current, providing higher electrical safety than ordinary plastic connectors and fully complying with global industrial safety standards.
2+4 Multi-pin Split Design for Dual Power & Signal Function: The optimized 2+4 pin layout separates power transmission and signal transmission physically. 2 pins ensure stable power input while 4 pins transmit multi-group control signals independently without crosstalk. This all-in-one design simplifies equipment interface layout and reduces overall assembly costs.
Tool-free Push Lock Self-locking Mechanism: Designed with an intuitive push-to-lock structure instead of traditional threaded connection, it enables fast and effortless mating with clear locking feedback. The stable buckle clamping force provides excellent anti-loosening performance against mechanical vibration and daily equipment jitter, ensuring consistent and reliable contact.
IP67 Ingress Protection for Harsh Working Conditions: Precision sealing structure achieves complete tightness after locking, blocking dust, rainwater, moisture and minor oil contamination. It maintains long-term stable performance in humid workshops, dusty environments and open-air outdoor installations.
Compact M16 Mini Structure for Lightweight Equipment Integration: Featuring a slim M16 outer size, this space-saving connector perfectly suits compact equipment layout and embedded installation. With universal male-to-female compatibility, it supports standardized mass production and convenient routine maintenance.

M16 2+4 Pin Technical Specifications

Electrical Parameters
Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications
