Name: 3+13 Pin Industrial Plug And Socket M25 ODM Best 300V Waterproof Male Female Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

홈 제품 소개 방수된 다중 핀 커넥터

3+13 Pin Industrial Plug And Socket M25 ODM Best 300V Waterproof Male Female Connector

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Ulinkcon
인증:	CE/Rohs/TUV/UL
모델 번호:	M25

결제 및 배송 조건:

최소 주문 수량:	협상
가격:	협상 가능
포장 세부 사항:	상자
배달 시간:	5~8일
지불 조건:	T/T,D/A,D/P,머니그램,L/C
공급 능력:	매달 100000 쌍

접촉

상세 제품 설명

핀 수:	3+13핀	현재의:	15A+5A
방수 등급:	IP67	온도 범위:	-40℃~+105℃
연결:	전선 대 기판	난연성 등급:	UL94-V0
강조하다:	3+13 pin industrial plug , M25 waterproof connector , 300V male female socket

M25 3+13 Pin Waterproof Connectors Outdoor Cable To Board Connector

Product Overview

The M25 3+13Pin industrial waterproof male and female connector is an integrated power and signal connection solution with a rated voltage of 300V. It is specially developed for industrial equipment requiring multi-channel signal transmission and centralized power supply.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Specifications

3+13 Integrated Pin Layout for Separated Power & Signal Transmission: This hybrid structure with 3 high-power pins and 13 high-density signal pins realizes independent transmission of power supply and control signals. It ensures stable power output while supporting synchronous transmission of multiple groups of control, sensor and data signals, effectively avoiding signal crosstalk and data loss for complex industrial linkage systems.
300V High Withstand Voltage for Higher Electrical Safety: Optimized with enhanced insulation structure, the connector features a rated voltage of 300V and strong breakdown resistance. It effectively prevents circuit risks caused by industrial voltage fluctuation and instantaneous high voltage, greatly improving electrical safety in standard DC and AC industrial power supply scenarios.
Professional ODM Customization Support: We provide full ODM customization services including pin definition, wire specification, appearance color, installation size and structural optimization. It can perfectly match non-standard automation equipment, intelligent control systems and personalized engineering project requirements.
Durable Insulation Housing with Anti-aging & Anti-corrosion Performance: Made of high-toughness flame-retardant insulating material, the housing features strong impact resistance, deformation resistance and chemical corrosion resistance. It remains stable under long-term industrial operation and extreme temperature changes with prolonged service life.

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+13
Number of Signal Positions	13
Contacts Preloaded	Yes
Operating Voltage (VAC)	300V max.
Operating Voltage (VDC)	300V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

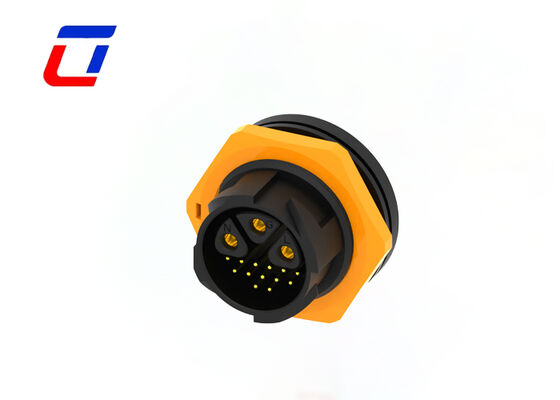

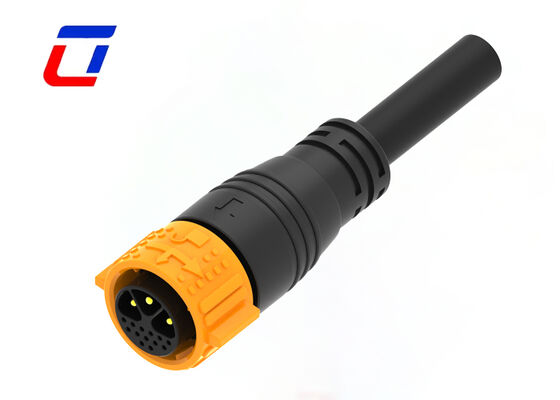

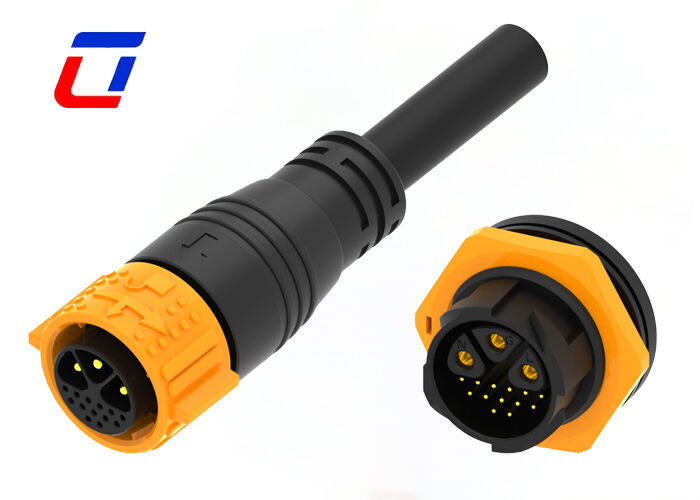

Product Images

Frequently Asked Questions

Q1: How can I get samples?

A1: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q2: Who is responsible for customs clearance? Do you provide necessary documents?

A2: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q3: What shipping methods do you offer? How long is the delivery time?

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
