Name: M16 IP67 Waterproof Connector 6 Pin Waterproof Cable Connector 2 Pin Power 4 Pin Data
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

홈 제품 소개 내수 케이블 연결기

M16 IP67 Waterproof Connector 6 Pin Waterproof Cable Connector 2 Pin Power 4 Pin Data

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Ulinkcon
인증:	CE/Rohs/TUV/UL
모델 번호:	M16

결제 및 배송 조건:

최소 주문 수량:	협상
가격:	협상 가능
포장 세부 사항:	1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라
배달 시간:	3~6근무일
지불 조건:	T/T,D/P,L/C,D/A,웨스턴 유니온,MoneyGram
공급 능력:	매달 100000 쌍

접촉

상세 제품 설명

핀:	2+4핀	재료:	PA66,UL94-V0
방수 수준:	IP67	작동 온도:	-40℃-+105℃
연락처 자료:	황동 금도금	특정 애플리케이션 시나리오:	자동 생산 라인

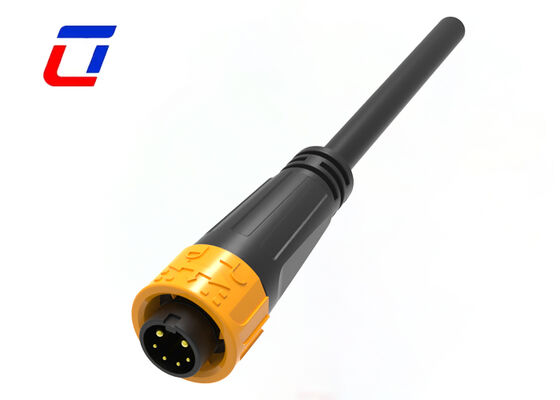

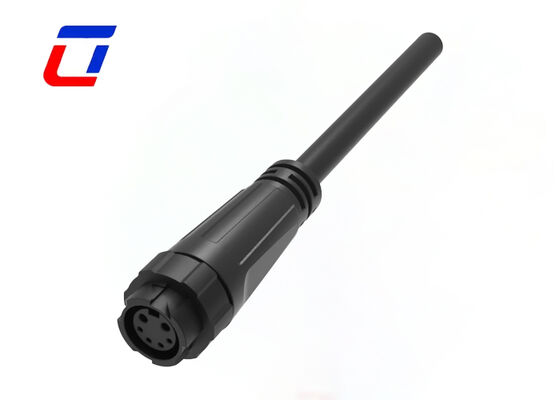

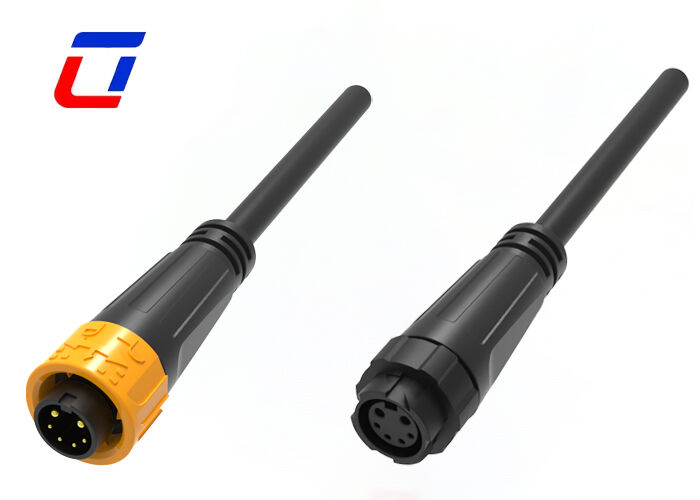

M16 IP67 Waterproof Connector 6 Pin Waterproof Cable Connector 2 Pin Power 4 Pin Data

Product Overview

M16 2+4 Pin Wire To Wire Connector ODM Industrial Power And Signal Connectors. PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16.

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Features

M16 IP67 Waterproof Connector features a 6-pin functional division design, with 2 pins independently carrying power transmission and 4 pins dedicated to data signal transmission. It realizes synchronous transmission of power and data without additional connectors, suitable for various equipment scenarios requiring simultaneous power supply and data transmission.

IP67 waterproof and dustproof protection can effectively resist heavy rain, sand, and humidity, adapting to complex and harsh environments such as outdoor and industrial areas, ensuring stable power supply and uninterrupted data transmission.

The terminals are made of high-conductivity material with low contact resistance, resulting in low power transmission loss and clear, interference-free data transmission, balancing power supply stability and data transmission accuracy.

M16 standard interface, compatible with conventional outdoor cables, easy to install and quick to plug in and out without complex tools, greatly improving construction and operation efficiency, suitable for industrial control, outdoor monitoring and other equipment.

Technical Specifications

Electrical Parameters
Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q1: Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q2: How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Q3: Can I have custom label?

Yes, of course. You can make your own private label and package. If you need to design the packaging, we also have professional designers to serve you.

Q4: Do you support product customization?

Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
