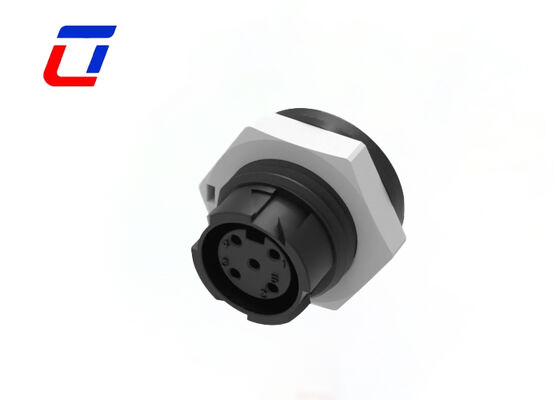

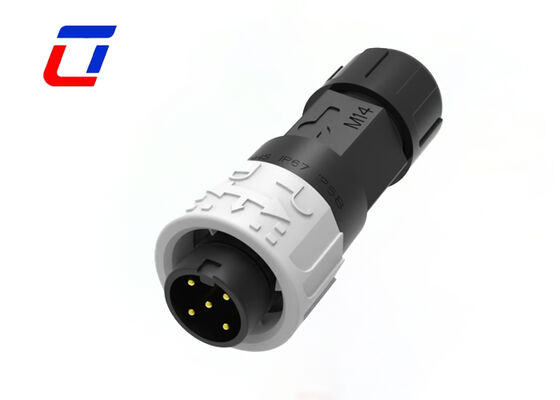

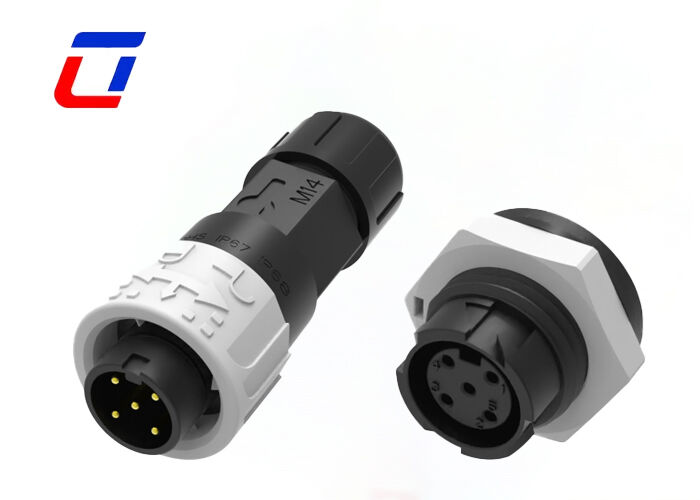

M16 Industrial 5 Pin Circular Connector Sizes Outdoor Waterproof Plug Socket Sale

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Ulinkcon
인증:	CE/Rohs/TUV/UL
모델 번호:	M16

결제 및 배송 조건:

최소 주문 수량:	협상
가격:	협상 가능
포장 세부 사항:	고품질 수출 상자
배달 시간:	영업일 기준 3~6일
지불 조건:	T/T,D/A,D/P,머니그램,L/C
공급 능력:	매달 100000 쌍

접촉

상세 제품 설명

핀 수:	5핀	현재의:	최대 8A 전력용
정격전압:	125V	방수 등급:	IP67
작동 온도:	-40℃~+105℃	접촉 재료:	황동 금도금
강조하다:	M16 waterproof circular connector , 5 pin industrial plug socket , outdoor waterproof connector sale

M16 DC Waterproof Connector Wire To Board 5 Pin Power Quick Lock Connector

Quick Details

5-Pin Power-Specific Structure
5-pin layout supports both power supply and signal transmission, compatible with multi-channel DC power output for wide application.
DC-Specific Waterproof Connection
Professional DC power solution with excellent insulation, anti-leakage and short-circuit protection for safer use in humid environments.
Quick-Lock Threadless Self-Locking System
One-press quick locking without thread rotation, efficient plug-and-play, shockproof and anti-loose for long-term reliability.
IP67 High Protection Level
Fully sealed waterproof and dustproof, suitable for harsh outdoor and industrial environments, stable and reliable under long-term use.
High-Quality Conductive & Insulating Materials
High-conductivity copper alloy contacts, heat-resistant and flame-retardant housing, low contact resistance, safe and durable.

Key Features

Push-lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version supports both wire-to-wire and wire-to-board connections
High current rating up to 8A for continuous operation
Cable assembly service available for custom requirements
OEM/ODM services supported

Electrical Parameters

Number of Poles	5Pin waterproof connector
Current Rating	8A max
Voltage Rating	125VAC max
Durability Voltage	500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar power systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

Professional Manufacturer

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q2: How many materials you can provide?

A2: There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors, and PVC/Rubber/Silicone materials for cables. We can also select materials according to your specific requirements.

Q3: Do you accept other payment currencies besides USD?

A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
