산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 |
| 배달 시간: | 5~8일 |
| 지불 조건: | T/T,D/A,D/P,머니그램,L/C |
| 공급 능력: | 매달 100000 쌍 |
| 핀 수: | 3+9 핀 | 현재의: | 15A |
|---|---|---|---|
| 방수 등급: | IP67 | 온도 범위: | -40℃~+105℃ |
| 재료: | 나일론 | 접촉 재료: | 황동 금도금 |
| 애플리케이션: | 자동 생산 라인 | 씰링 재료: | 방수 O-링 |
| 강조하다: | M19 waterproof quick connector,3 pin gold plated connector,outdoor waterproof plug socket |
||

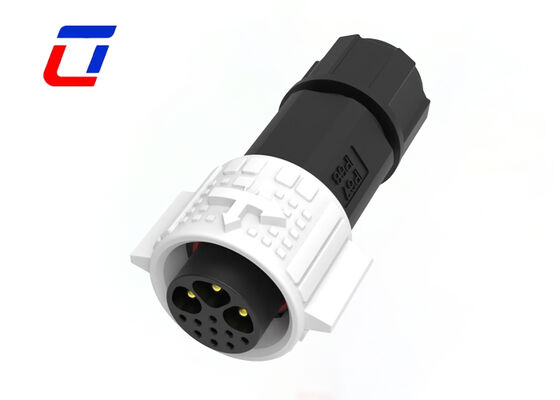

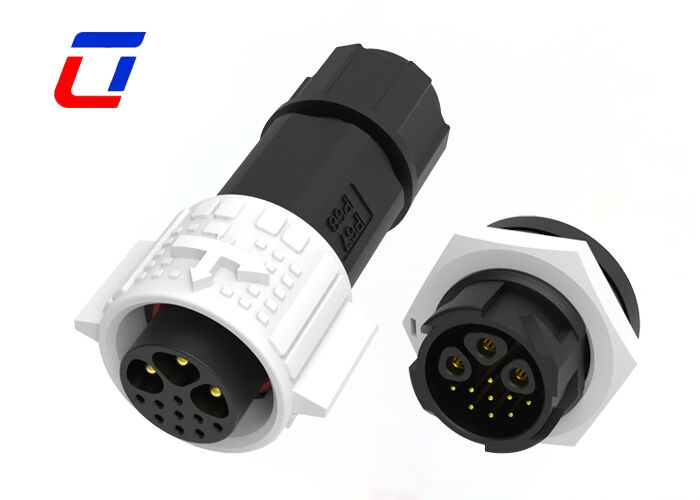

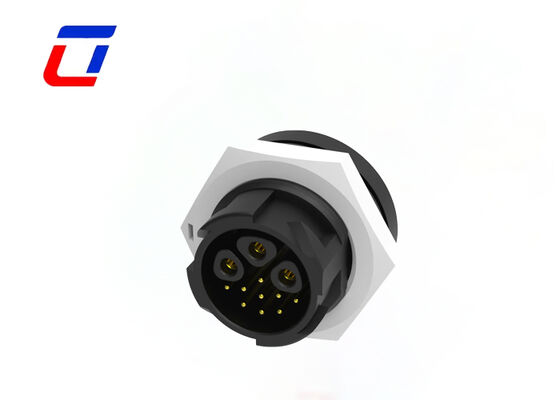

Quick Release Round Connector M19 3+9 Pin OEM Waterproof 300V Connector
The M19 3+9 Pin Quick-Disconnect OEM Waterproof Connector is an industrial-grade wire connector that supports customization. It features a separate structure of 3-pin main power and 9-pin data signal, with a rated voltage of 300V. Combined with IP67 waterproof performance and a convenient quick-disconnect mechanism, it is specifically designed for scenarios requiring efficient plugging and unplugging as well as personalized needs.
3 Pin & 9 Pin Optional
Supports 3-pin and 9-pin configurations, meeting different power and signal transmission requirements.
Gold Plated Pins
Gold-plated contact pins ensure excellent conductivity, low resistance, oxidation resistance and long service life.
Quick Connect Structure
Quick locking and plug-and-play design, enabling fast installation and high connection efficiency.
IP67 Waterproof Performance
High waterproof and dustproof grade, suitable for outdoor lighting, monitoring and industrial equipment.
Professional Manufacturer Supply
Stable quality, mass production capability, ideal for industrial and outdoor engineering applications.
| Connector System | Cable-to-Board |
|---|---|
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Receptacle |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Number of Poles | 3+9 |
|---|---|
| Current Rating | 15A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s |
| Shell Material | PA66 |
|---|---|
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Operating Temperature Range | -40°C to 105°C |
|---|---|
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Durability Rating (Cycles) | 250, 251 |
| UL Flammability Rating | UL 94V-0 |
