| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs/TUV/UL |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T,D/P,L/C,D/A,웨스턴 유니온,MoneyGram |
| 공급 능력: | 매달 100000 쌍 |
| 성별: | 남성에서 여성으로 | 재료: | 나일론 |
|---|---|---|---|
| 정격전압: | 300V | 작동 온도: | -40℃-+105℃ |
| 난연성 등급: | UL 94-V0 | 색상: | 푸르고 하얗고 녹색입니다 |
| 강조하다: | 8 pin waterproof data connector,M19 circular data connector,male to female waterproof connector |
||

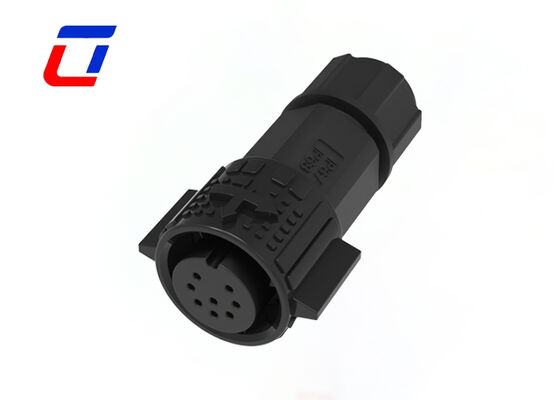

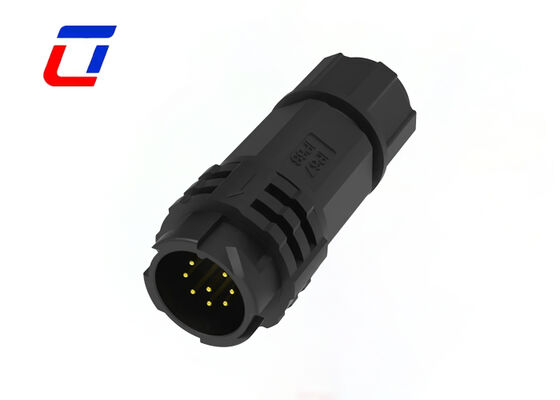

8 Pin Circular Connector M19 Male Female Waterproof Connectors
Quick Description
8-Pin Configuration Standard
8-pin design, providing sufficient channels for stable multi-signal and data transmission in industrial equipment.
M19 Circular Standard
Universal M19 circular size, high compatibility, easy installation and matching with standard industrial components.
Waterproof & Dustproof
High-grade waterproof and dustproof structure, suitable for humid, outdoor and harsh industrial working environments.

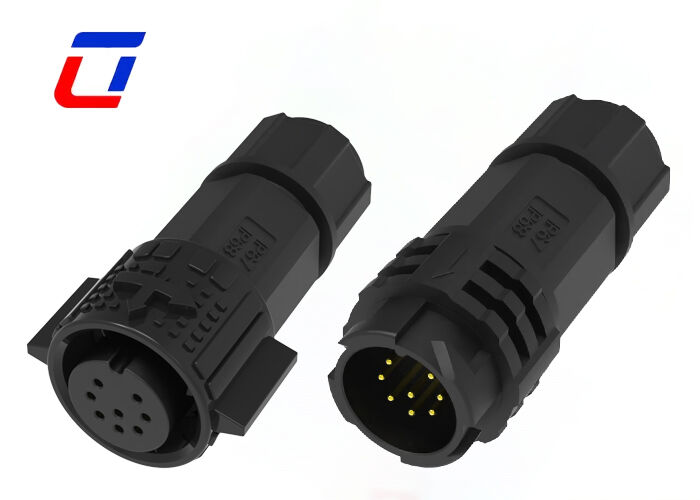

Male-to-Female Plug-in
Male and female butt-joint design, plug-and-play, fast connection, convenient for installation and maintenance.
Circular Data Connector
Professional for data transmission, stable signal, strong anti-interference, ideal for communication and control systems.
Wide Application
Widely used in sensors, industrial automation, control systems, communication equipment and outdoor devices.
Main Features
Application industries
| Electrical Parameters | |
| Number of Poles | 8Pin |
| Current Rating | 10A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1000VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 1.5mm2 |
Design Sketch
1. Q: How do I place an order? What is the process?
A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
2. Q: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q:What is your Minimum Order Quantity (MOQ)?
A: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long - term cooperation.
