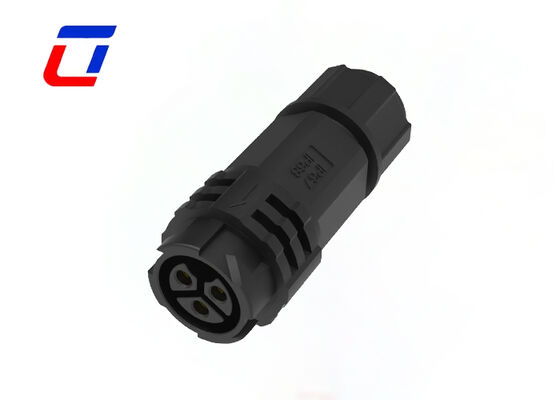

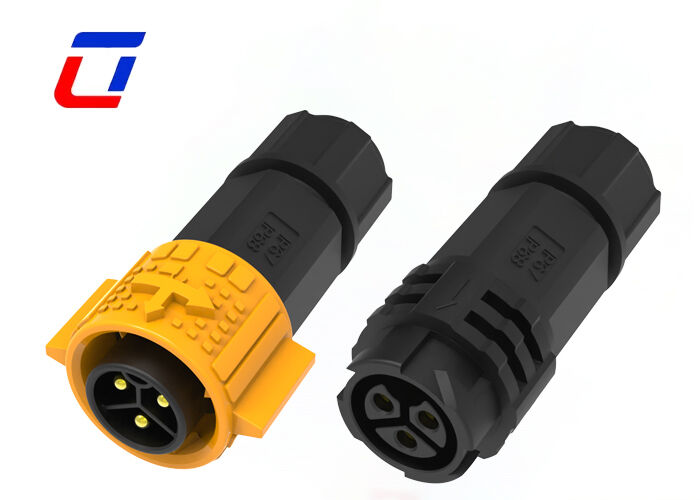

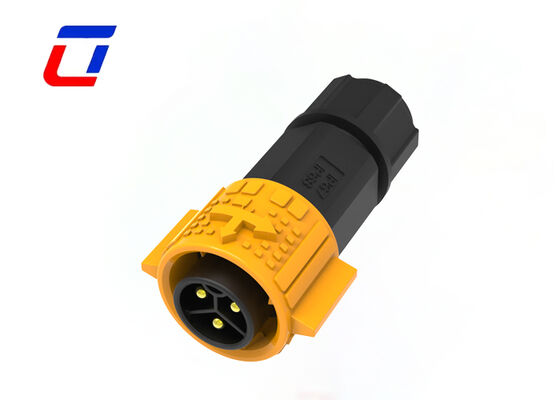

3 Pin M19 Waterproof Power Connectors Quick Male Female Connector 20A For Industry

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Ulinkcon
인증:	CE/Rohs/TUV/UL
모델 번호:	M19

결제 및 배송 조건:

최소 주문 수량:	협상
가격:	협상 가능
포장 세부 사항:	1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라
배달 시간:	3~6근무일
지불 조건:	T/T,D/P,L/C,D/A,웨스턴 유니온,MoneyGram
공급 능력:	매달 100000 쌍

접촉

상세 제품 설명

현재 등급:	20A	재료:	PA66 및 황동 주석 도금
정격전압:	300V	난연성 등급:	UL94-V0
유형:	와이어가 전보를 칩니다	온도:	-40~105C
색상:	검정, 흰색, 노란색, 빨간색
강조하다:	3 pin waterproof power connector , M19 industrial waterproof connector , 20A quick connect male female

20A 3 Pin Power Connector M19 DC Waterproof Quick Connector

Product Overview

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Power

Main Features

Item Name: M19 Waterproof Cable Connector
Specifications: Straight male-female mating, elbow male-female mating, front-mounted wire-to-board, rear-mounted wire-to-board, integrated injection molding
Coupling way: Self-locking
Pins number: 2-22 pins
Plug: Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof grade: IP67/IP68
Connector type: Assembly lock screw; Assembly welding; Injection molding with cable
Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring range Assembled: 6.0mm~16mm; Molding 6.0mm~16.5mm
Durability: 3000 times
Applicable temperature: -40℃~105℃

Quick Description

3-Pin M19 Standard
Standard M19 thread size, 3-pin configuration for stable power transmission.

Waterproof & Industrial Grade
IP67/IP68 high waterproof performance, suitable for harsh industrial environments.

Quick Connect Male & Female
Plug‑and‑play quick locking design, easy and fast installation.

20A High Current Rating
Supports up to 20A current, ideal for industrial power applications.

Reliable Industrial Connector
Stable connection, anti-vibration, corrosion-resistant, long service life.

Wide Industrial Compatibility
Used in machinery, outdoor equipment, lighting, electrical cabinets and more.

Technical Specifications

Electrical Parameters

Number of Poles	3 pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch
