산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs |
| 모델 번호: | M16 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 고품질 수출 상자 |
| 배달 시간: | 영업일 기준 3~6일 |
| 지불 조건: | T/T,D/A,D/P,머니그램,L/C |
| 공급 능력: | 매달 100000 쌍 |
| 핀 수: | 3핀 | 현재의: | 최대 10A |
|---|---|---|---|
| 정격전압: | 300V | 방수 등급: | IP67 |
| 색상: | 빨간색 파란색 흰색 검정색 노란색 | 산업 분야: | 산업자동화 / 신에너지 / 건설엔지니어링 |
| 난연성 등급: | UL94-V0 | ||

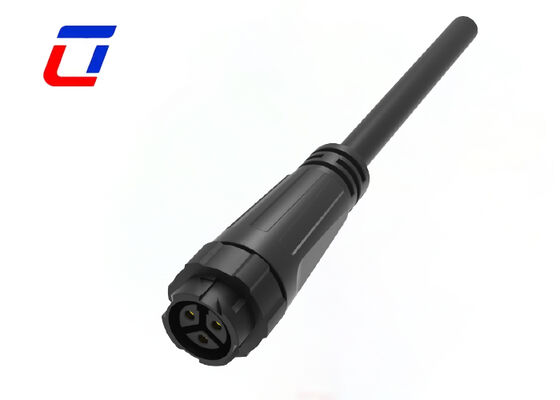

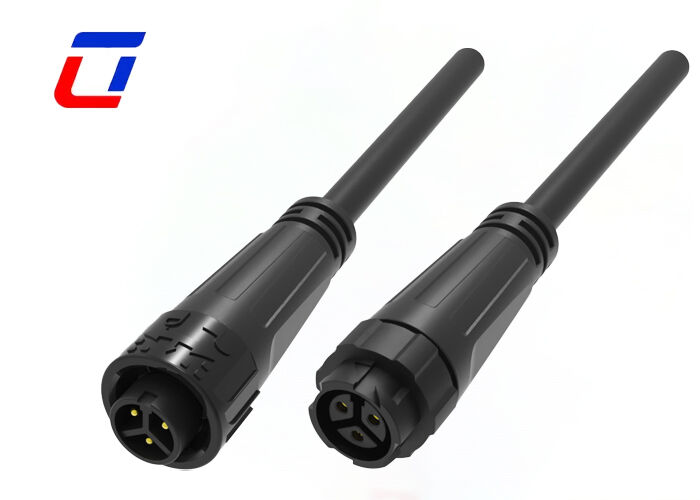

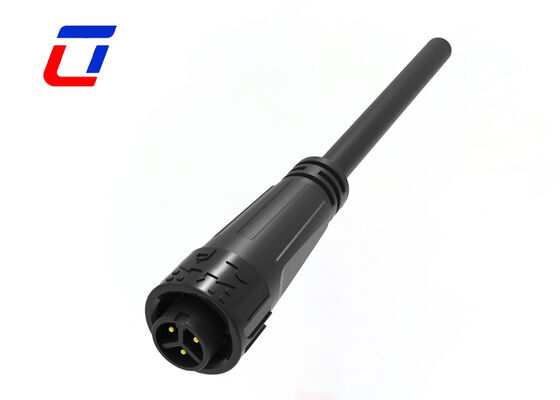

| 강조하다: | M16 waterproof power connector 3 pin,wire to wire connector 300V,Rohs waterproof cable connector |
||
Wire‑to‑Wire Direct Connection Design
Specially designed for wire‑to‑wire power connection, enabling fast and stable docking between two cables without PCB or panel, greatly improving wiring efficiency.
IP67 Waterproof & Dustproof Protection
With integrated sealed structure, it reaches IP67 protection grade, effectively isolating moisture, rain, dust and oil, suitable for outdoor and harsh industrial environments.
3‑Pin Special Power Terminal Configuration
Optimized 3‑pin layout for stable power transmission, with low contact resistance and high conductivity, ensuring safe and reliable power supply for various equipment.
300V Rated Voltage for Wide Application
Rated voltage up to 300V, ideal for low‑voltage power systems, lighting, electrical equipment and industrial control devices.
RoHS Compliant & Environmentally Friendly
Fully meets RoHS environmental standards, free of hazardous substances, safe for industrial and daily use, and eco-friendly.
| Number of Poles | 3Pin waterproof connector |
|---|---|
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s |
| Contact Resistance | 10 mΩ max |
|---|---|
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.
The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
