산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs/TUV/UL |
| 모델 번호: | M16 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 고품질 수출 상자 |
| 배달 시간: | 영업일 기준 3~6일 |
| 지불 조건: | T/T,D/A,D/P,머니그램,L/C |
| 공급 능력: | 매달 100000 쌍 |
| 핀 수: | 2핀 | 현재의: | 최대 10A 전력용 |
|---|---|---|---|
| 정격전압: | 300V | 방수 등급: | IP67 |
| 난연성 등급: | UL94-V0 | 색상: | 파란색/녹색/노란색/빨간색 |
| 강조하다: | PA66 M16 waterproof power connector,2 pin wire to board connector,300V 10A male female connector |
||

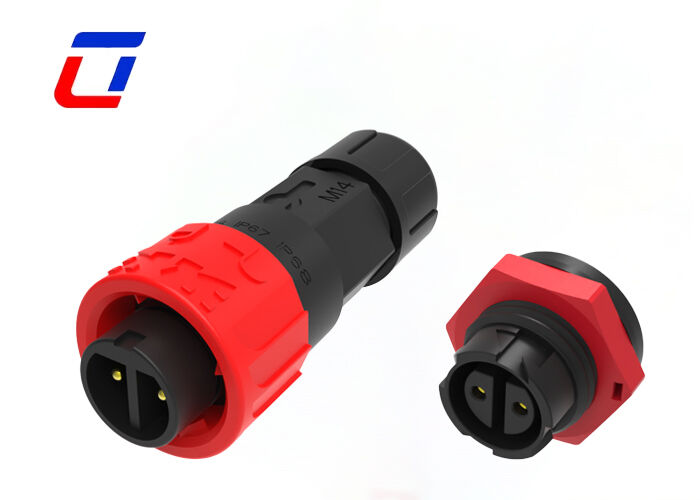

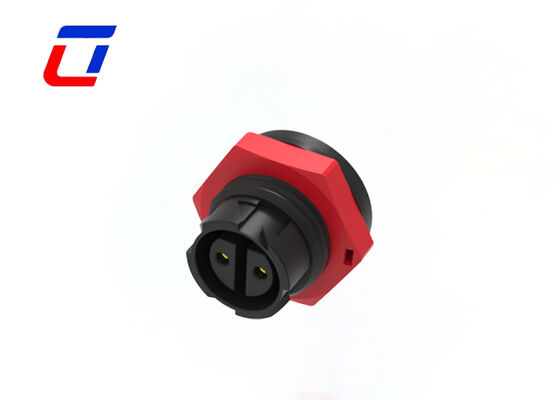

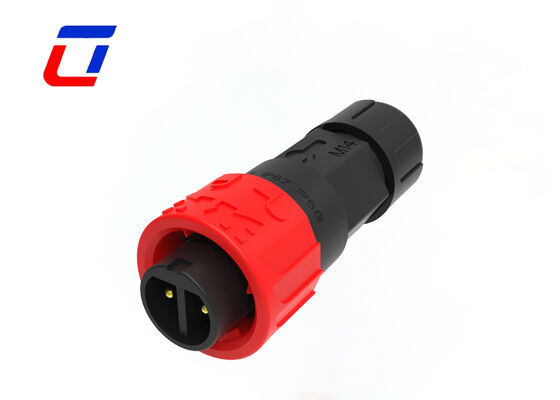

2 Pin Circular Power Connector M16 300V Waterproof Male Female Connector
Description of Industrial Waterproof Circular Connector
Premium PA66 Insulation Housing
Made of high-strength PA66 engineering plastic, with good insulation, high temperature resistance and anti-aging performance, ensuring safe and long-lasting use.
2-Pin Compact Power Design
Standard 2-pin structure dedicated for stable power transmission, low contact resistance, high conductivity, ideal for small power equipment and control circuits.
10A 300V Safe Electrical Rating
Rated current 10A, rated voltage 300V, suitable for low-voltage power supply systems and various indoor and outdoor electrical connection applications.
Standard M16 Circular Interface
Universal M16 size with high compatibility, easy for panel installation, equipment assembly and later maintenance.
Male & Female Plug-Socket Matching
Precision male and female connectors with stable docking, firm connection and strong anti-vibration performance, not easy to loose.
Wire-to-Board Connection Structure
Professional wire-to-board design, convenient for cable and PCB board connection, improving assembly efficiency and integration.
Main Feature
| Electrical Parameters | |
| Number of Poles | 2Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
Production Dimension
More Technical Details
FAQ
Q1:How can I get samples?
A1:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
Q2:Who is responsible for customs clearance? Do you provide necessary documents?
A2: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
Q3:What shipping methods do you offer? How long is the delivery time?
A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
