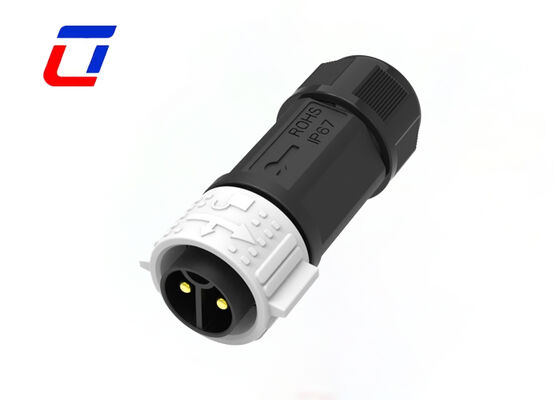

M25 2-Pin High Current Power Connector
50A Waterproof DC Power Connector with 600V Rating for Cable-to-Cable Applications
Product Overview

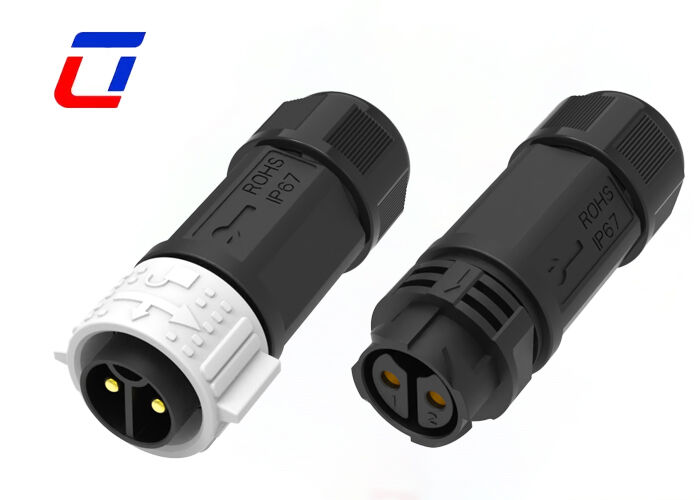

M25 2-Pin Waterproof DC Power Connector featuring male-to-female configuration with 50A current rating, designed for reliable high-current power transmission in demanding environments.
Key Features
- Push-lock quick release system for easy connection
- Multiple core configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin, and 2+20Pin
- Field assembly options: wire-to-wire and wire-to-board versions
- High current rating up to 50A for continuous operation
- Cable assembly services available for custom requirements
- OEM/ODM manufacturing support
Application Industries
- Communications equipment
- Product coding machines and inkjet systems
- Inventory management systems
- Solar power systems
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Heavy machinery and industrial automation
Product Description
The M25 2-Pin Male-to-Female Waterproof DC Power Connector is engineered for high-current DC power transmission applications. Designed specifically for DC power supply systems, it serves as a reliable core component for outdoor and harsh-environment equipment requiring uninterrupted power, featuring excellent waterproof performance and consistent electrical conductivity.
Featuring a standardized M25 self-locking structure, this 2-pin connector ensures precise compatibility with corresponding circuit interfaces. The male-female plug-and-play design allows for quick assembly while maintaining secure connections with low contact resistance. With a maximum rated current of 50A, it meets the power demands of mid-to-high-power devices including new energy vehicle charging piles, outdoor communication base stations, industrial automation machinery, marine vessels, and solar photovoltaic systems.
Constructed from high-quality PVC material, the connector housing offers outstanding aging and corrosion resistance for long-term durability. Internal pin cores are made of high-purity brass with gold plating, reducing contact resistance, minimizing heat generation during power transmission, enhancing anti-oxidation performance, and extending product service life.
Combined with an IP67 waterproof rating and self-locking mechanism, the connector effectively prevents intrusion of rainwater, dust, and oil stains, ensuring stable operation in humid, dusty, or temporarily submerged environments while providing comprehensive safety protection for connected equipment.
Electrical Parameters
| Number of Poles |
2Pin waterproof connector |
| Current Rating |
50A max |
| Voltage Rating |
600VAC max |
| Durability Voltage |
2500VAC @ 60 s |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max. Cable Cross Section Area |
0.5mm² ~ 6.0mm² |
Production Dimensions
Technical Details
