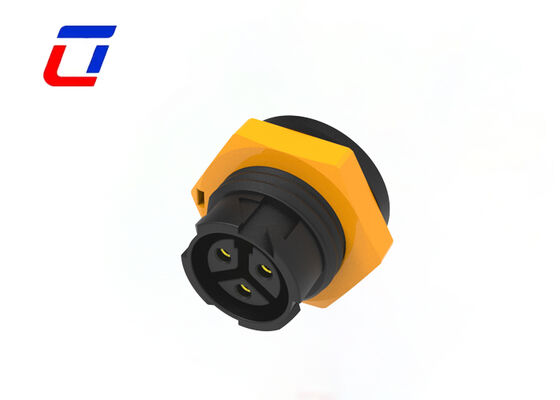

Name: M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

홈 제품 소개 IP67 방수 연결 장치

M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Ulinkcon
인증:	CE/Rohs
모델 번호:	M16

결제 및 배송 조건:

최소 주문 수량:	협상
가격:	협상 가능
포장 세부 사항:	고품질 수출 상자
배달 시간:	영업일 기준 3~6일
지불 조건:	T/T,D/A,D/P,머니그램,L/C
공급 능력:	매달 100000 쌍

접촉

상세 제품 설명

핀 수:	3핀	현재의:	최대 10A
정격전압:	300V	방수등급:	IP67
색상:	빨간색 파란색 흰색 검정색 노란색	접촉 재료:	황동 금도금
강조하다:	M16 3 pin power connector , 10A industrial plug and socket , IP67 waterproof power connector

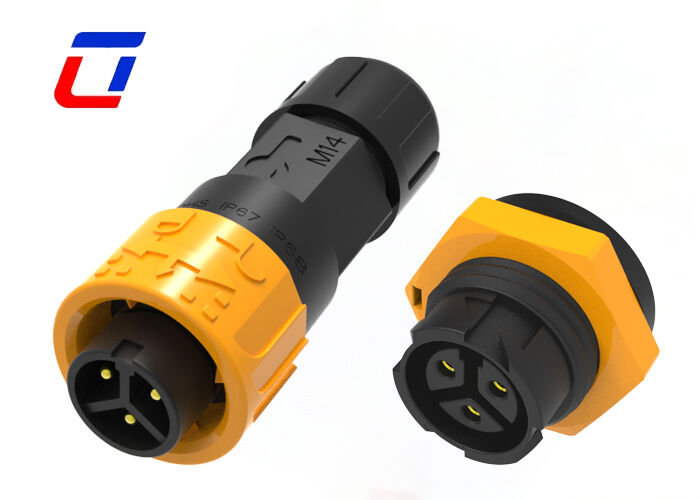

M16 Male Female 3 Pin Power Connector 10A Industrial Plug And Socket

Quick Release M16 3Pin Waterproof Circular Connector

This M16 3-pin male-female circular connector features a high-strength plastic housing and is designed for industrial automation applications. The quick-docking mechanism ensures efficient operation in production line environments, providing reliable power transmission and stable connections in complex industrial settings.

Product Features

Push lock quick release system for easy connection
Multiple core options available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire and wire to board options
High current rating up to 10A for continuous operation
IP67 waterproof rating for industrial environments
Cable assembly service and OEM/ODM customization available

Electrical Specifications

Number of Poles	3Pin waterproof connector
Current Rating	10A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1500VAC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines and inkjet systems
Inventory product coding equipment
Solar power systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery
PLC control systems and automation equipment

Product Dimensions

Technical Details

Frequently Asked Questions

Who is responsible for customs clearance? Do you provide necessary documents?

We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are the buyer's responsibility under EXW/FOB terms. We can assist with document preparation as needed.

Can I pay after receiving the goods?

For first-time customers, advance payment is required to ensure smooth production. For established clients with successful order history, flexible payment terms can be discussed.

What shipping methods do you offer? How long is the delivery time?

We offer multiple shipping options: Courier (DHL/UPS/FedEx) takes 3-7 working days for small parcels; Air freight takes 7-15 working days; Sea freight takes 20-45 working days. Delivery times vary by destination and shipping method.
