| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T,D/P,L/C,D/A,웨스턴 유니온,MoneyGram |
| 공급 능력: | 매달 100000 쌍 |
| 핀: | 8핀 | 커넥터 유형: | 퀵 커넥터 |
|---|---|---|---|
| 정격전압: | 300V | 작동 온도: | -40℃-+105℃ |
| 난연성 등급: | UL 94-V0 | 색상: | 푸르고 하얗고 녹색입니다 |
| 강조하다: | IP67 waterproof cable connector,8 pin outdoor cable connector,M19 waterproof male female connector |
||

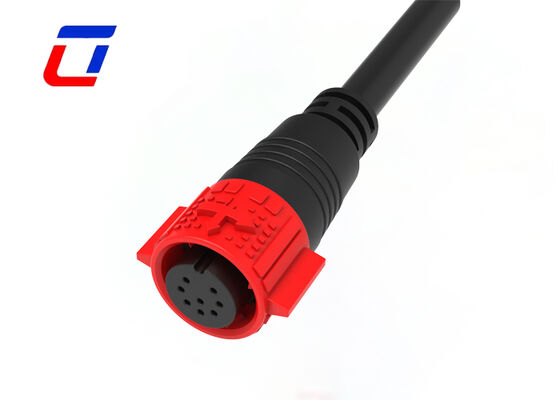

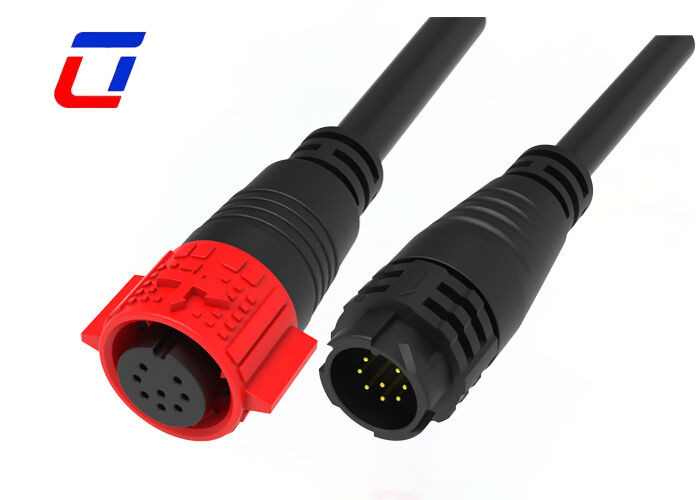

This M19 8-pin circular connector is specifically engineered for outdoor data transfer applications, featuring 300V voltage compatibility, IP67 protection rating, and a quick-release mechanism. The expanded 8-pin design supports multi-channel synchronous data transmission, while the male-female cable connection includes a one-click quick-release system for easy installation and maintenance.
Constructed with high-strength plastic housing for enhanced durability against outdoor environmental corrosion, this connector delivers reliable performance in demanding conditions.
| Number of Poles | 8 Pin |
| Current Rating | 5A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1000VAC @ 60 seconds |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C to +105°C |
| IP Class | IP67 (1m / 30min when mated) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Min Wire Size OD | 3.0mm - 6.0mm |
| Max Wire Size OD | 8.0mm - 10.0mm |
| Max Cable Cross Section Area | 0.5mm² - 1.5mm² |
