| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs/TUV/UL |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T,D/P,L/C,D/A,웨스턴 유니온,MoneyGram |
| 공급 능력: | 매달 100000 쌍 |
| 정격전압: | 300V | 핀: | 5핀 |
|---|---|---|---|
| 난연성 등급: | UL94-V0 | 작동 온도: | -40℃~+105℃ |
| 재료: | 나일론 | 보호 수준: | IP67 |
| 강조하다: | 20A waterproof electrical connector,M19 quick lock connector,5 pin circular power connector |
||

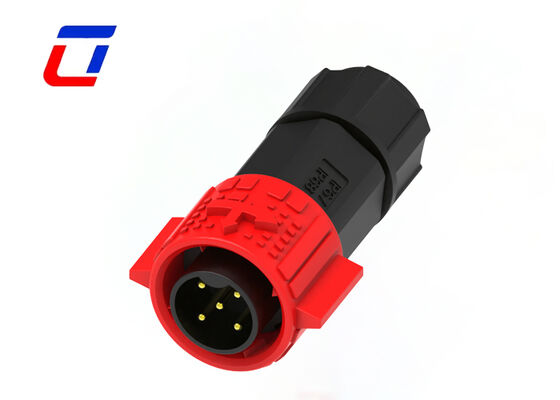

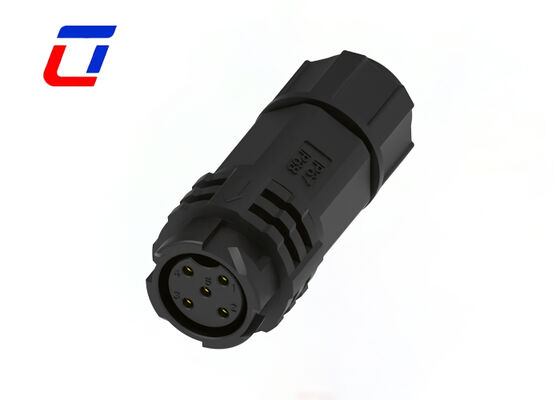

5 Pin Circular M19 PA66 300V Male To Female Waterproof Connector
Built with high-strength PA66 material, this M19 5-pin circular connector is capable of supporting 300V high-voltage power transmission. The male-female docking structure, along with its reliable waterproof performance, makes it a go-to choice for power connection requirements in various scenarios.
The PA66 shell is highly resistant to weather and aging, and the smooth plugging action between male and female ends ensures that both safety and practicality are well-addressed. Copper pins with excellent conductivity reduce transmission loss significantly, and the 300V rated voltage makes it compatible with different types of high-voltage equipment.
With an IP67 waterproof and dustproof rating, it is unaffected by rain and dust. The PA66 housing resists high temperatures and corrosion, and together with its enhanced insulation properties, it provides double protection against high-voltage risks.

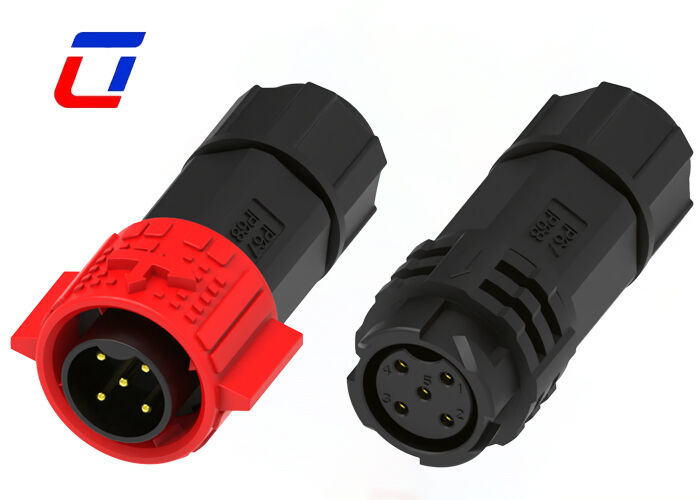

The male-to-female structural design features foolproof alignment to prevent wrong insertion. The PA66 housing can work stably in temperatures ranging from -40℃ to 105℃, making it suitable for harsh operating environments. The tail part is compatible with 0.5-2.5mm² wires, and the integrated sealing and locking functions improve the reliability of the connection.
| Parameter | Value |
|---|---|
| Number of Poles | 5Pin |
| Current Rating | 20A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1000VAC @ 60 s. |
| Parameter | Value |
|---|---|
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Parameter | Value |
|---|---|
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max. Cable Cross Section Area | 0.5mm² ~ 2.5mm² |
Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
