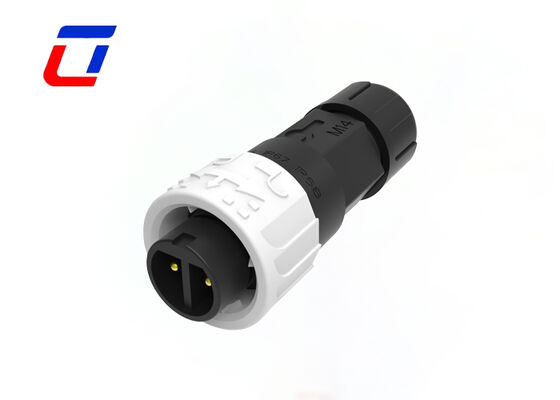

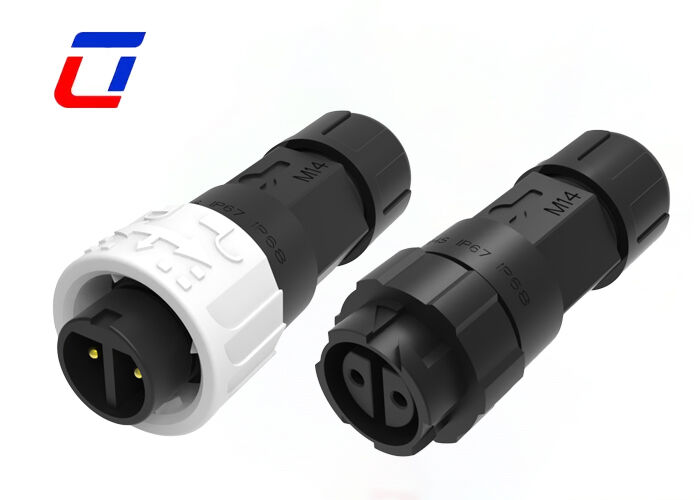

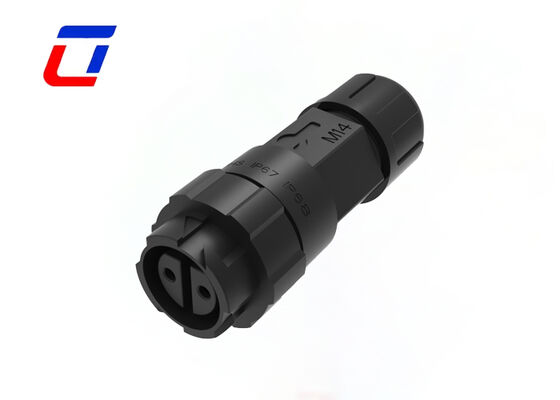

Name: Male Female Connector 2 Pin Nylon M16 IP67 Brass Gold-Plated Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

홈 제품 소개 방수 원형 연결 장치

Male Female Connector 2 Pin Nylon M16 IP67 Brass Gold-Plated Connector

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Ulinkcon
인증:	CE/Rohs
모델 번호:	M16

결제 및 배송 조건:

최소 주문 수량:	협상
가격:	협상 가능
포장 세부 사항:	고품질 수출 상자
배달 시간:	영업일 기준 3~6일
지불 조건:	T/T,D/A,D/P,머니그램,L/C
공급 능력:	매달 100000 쌍

접촉

상세 제품 설명

핀 수:	2핀	현재의:	최대 10A 전력용
정격전압:	300V	방수등급:	IP67
난연성 등급:	UL94-V0	색상:	파란색/녹색/노란색/빨간색
강조하다:	2 pin waterproof power connector , M16 IP67 brass connector , gold-plated nylon male female connector

Male Female Connector 2 Pin Nylon M16 IP67 Brass Gold-Plated Connector

Product Overview

2 Pin Circular Power Connector M16 300V Waterproof Male Female Wire Connector

Industrial waterproof circular connector designed for cable-to-cable connection scenarios with 300V rated voltage applications. Suitable for small and medium-power equipment with stable power transmission requirements.

Key Features

2-Pin Connection Design

Adopts 2-pin male-female plug-in design specifically for cable-to-cable connections. Features M16 interface standard with compact circular structure, precise pin alignment, and minimal connection gap for stable power transmission.

Professional Waterproof Performance

High-standard waterproof structure with integrated sealing process and custom waterproof rubber ring. Resists erosion from rainwater, sand, oil stains, and humid environments. Suitable for outdoor operations and complex industrial conditions with high humidity and dust.

Cable-to-Cable Connection Advantages

Male and female plugs firmly fixed to cables without loosening hazards. Resists pulling and vibration during equipment operation. No complex installation tools required for convenient on-site plug-in operation.

Materials & Safety Performance

Conductor made of high-conductivity oxygen-free copper with anti-oxidation gold-plated surface. Shell constructed from high-insulation grade engineering plastic with excellent aging resistance and impact resistance. Isolates electromagnetic interference and eliminates potential safety hazards.

Main Features

Push lock quick easy release system
Multi-core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field-installable variants: wire-to-wire and wire-to-board configurations
High-current-rated waterproof connector: ideal for prolonged operation up to 10A
Cable assembly services provided - customization available
OEM/ODM partnerships accepted

Technical Specifications

Electrical Parameters

Number of Poles	2Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Dimensions

Technical Details

Frequently Asked Questions

How can I get samples?

We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier number and detailed address for immediate sample dispatch.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
