산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs |
| 모델 번호: | M25 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 |
| 배달 시간: | 5~8일 |
| 지불 조건: | T/T,D/A,D/P,머니그램,L/C |
| 공급 능력: | 매달 100000 쌍 |
| 핀 수: | 3+9 핀 | 방수등급: | IP67 |
|---|---|---|---|
| 온도 범위: | -40℃~+105℃ | 재료: | 나일론 |
| 연결 모드: | 푸시 잠금 | 접촉 재료: | 황동 금도금 |
| 강조하다: | M25 waterproof bulkhead connector,3+9 pin multi pin connector,IP67 waterproof circular connector |
||

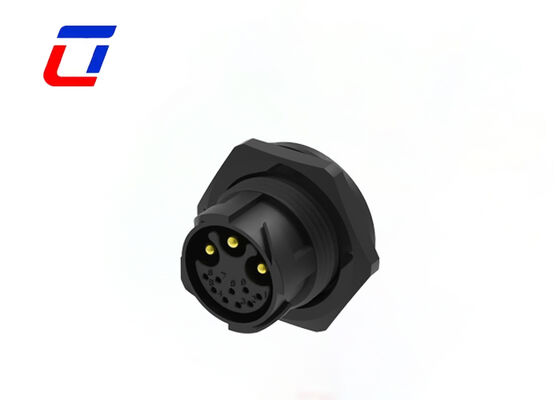

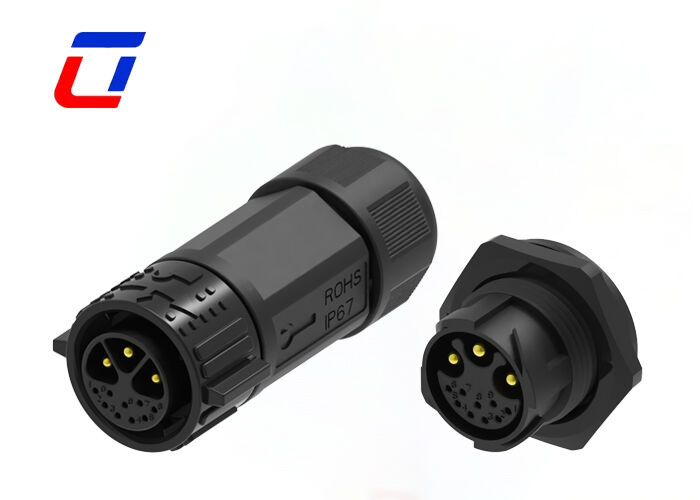

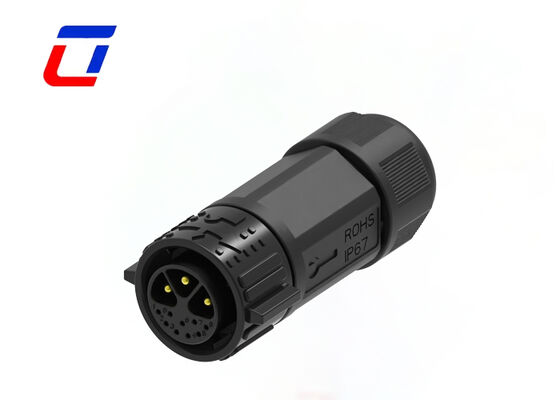

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector
With three pins dedicated to main power supply and nine pins for multi-channel parallel signal transmission (flexibly assignable to sensors, controllers, status lights, etc.), this connector eliminates the need for the traditional "1 power + 3 signal connectors" setup. It reduces equipment interface count by 75% and eliminates wiring errors entirely, streamlining system integration.
The foolproof guide groove prevents pin damage from incorrect insertion, while the elastic buckle achieves instant locking in one second—no tools required. This allows single-person installation even in high-altitude or narrow outdoor spaces, improving construction efficiency and safety.
Rated 30A current and 300V voltage perfectly align with outdoor medium-power device requirements. Compared to low-current alternatives, it doubles the load-bearing capacity, expanding application versatility.
Featuring triple sealing technology and weatherproof housing, it withstands heavy rainfall, sandstorms, high-temperature exposure, and freezing cold. Maintains uninterrupted, fault-free operation in unprotected outdoor settings, meeting long-term outdoor working demands of photovoltaics, security, amusement equipment, and more.
| Product Type Features |
Connector System: Cable-to-Board Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit |
|---|---|
| Configuration Features |
Number of Positions: 3+9 Number of Signal Positions: 9 Contacts Preloaded: Yes |
| Electrical Characteristics |
Operating Voltage (VAC): 300V max. Operating Voltage (VDC): 300V max. |
| Body Features |
Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes |
| Contact Features |
Contact Current Rating (Max): 30A max. Circular Connector Contact Type: Pin-Socket |
| Mechanical Attachment |
Connector Mounting Type: Cable Mount (Free-Hanging) Mating Alignment Type: Keyed Mating Retention: With |
| Dimensions | Wire Size (AWG): 20AWG, 18AWG, 16AWG, 14AWG |
| Usage Conditions |
Operating Temperature Range: -40°C to 105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6 |
| Industry Standards | UL Flammability Rating: UL 94V-0 |
