산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE,TUV,UL,RoHS |
| 모델 번호: | M25 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 고품질 수출 상자 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T,D/A,D/P,MoneyGram,L/C,웨스턴 유니온 |
| 공급 능력: | 매달 100000 쌍 |
| 현재의: | 최대 50A 전력용 | 핀 수: | 3개 핀 |
|---|---|---|---|
| 방수등급: | IP67 | 작동 온도: | -40℃-+105℃ |
| 난연성 등급: | UL94-V0 | 하우징 재질: | PA66 |
| 강조하다: | M25 panel mount power connector 3 pin,50A quick lock electrical connectors,waterproof plug socket with warranty |
||

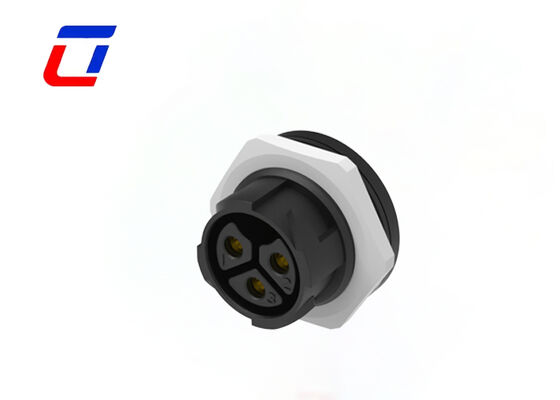

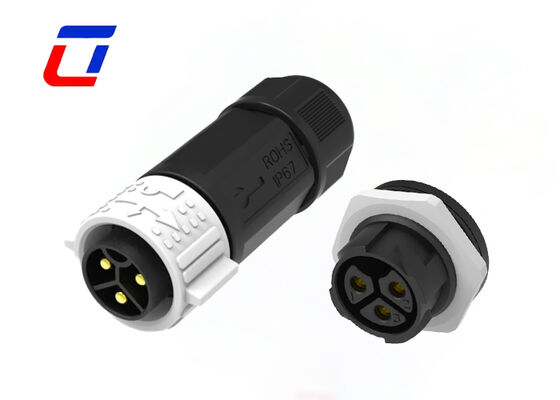

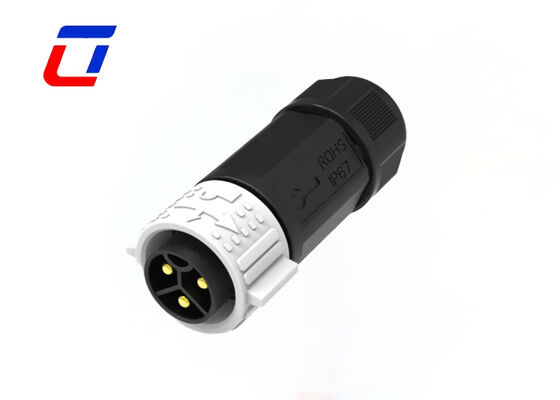

Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector designed for critical power connections in harsh environments. This robust solution delivers high-current transmission performance and superior environmental adaptability, making it essential for industrial automation, new energy applications, and outdoor machinery operations.
| Parameter | Specification |
|---|---|
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Parameter | Specification |
|---|---|
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max Cable Cross Section Area | 0.5mm² ~ 6.0mm² |
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
A: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
A: We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.
A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
