산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs/TUV/UL |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1.플라스틱 백 ;2.통 ;3.고객의 요구조건에 따라서 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T,D/P,L/C,D/A,웨스턴 유니온,MoneyGram |
| 공급 능력: | 매달 100000 쌍 |
| 핀: | 8핀 | 현재 등급: | 5A |
|---|---|---|---|
| 재료: | 나일론 | 정격전압: | 300V |
| 작동 온도: | -40℃-+105℃ | 난연성 등급: | UL 94-V0 |
| 강조하다: | 300V waterproof M19 8Pin connector,IP67 quick disconnect wire connector,waterproof data connector with 300V |
||

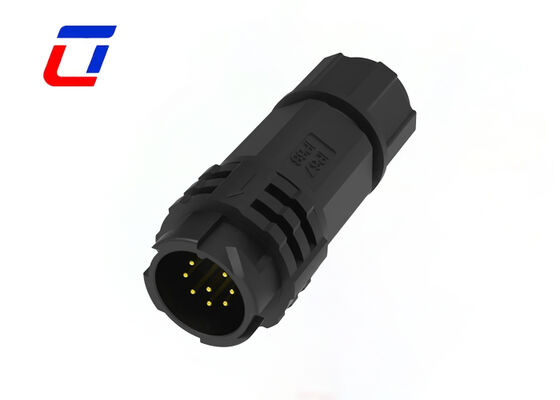

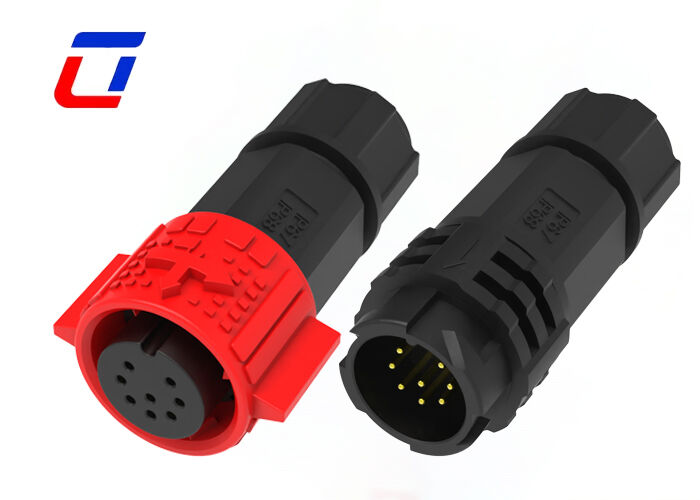

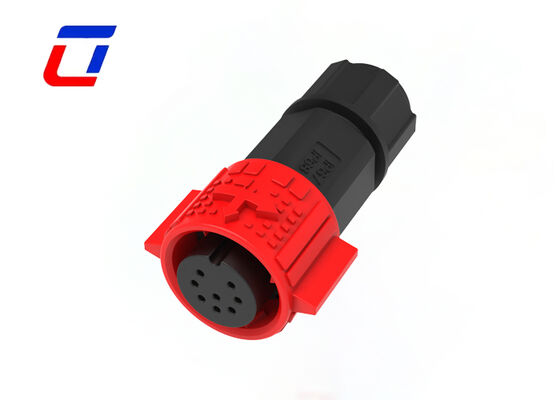

8 Pin Circular Connector M19 Waterproof Connectors
Quick Description
Main Features
Application industries
| Electrical Parameters | |
| Number of Poles | 8Pin |
| Current Rating | 5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: What payment methods do you accept?
A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
3. Q: How to track my shipment?
A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
