산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs |
| 모델 번호: | M25 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 고품질 수출 상자 |
| 배달 시간: | 영업일 기준 3~6일 |
| 지불 조건: | T/T,D/A,D/P,머니그램,L/C |
| 공급 능력: | 매달 100000 쌍 |
| 핀 수: | 4핀 | 현재의: | 50A |
|---|---|---|---|
| 정격전압: | 500V | 성별: | 남성/여성 |
| 재료: | 나일론 | 색상: | 빨강/황색/검정/백색 |
| 강조하다: | 4 pin waterproof power connector,ROHS wire to wire connector,push locking power connector |
||

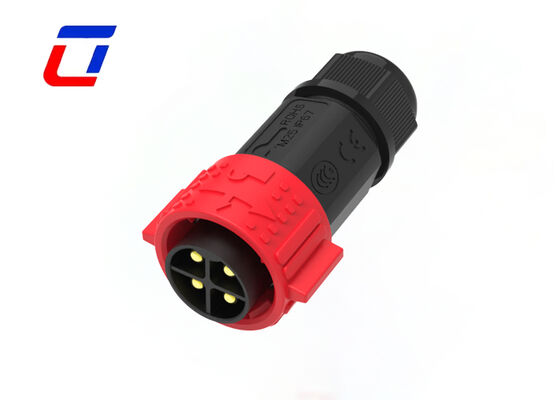

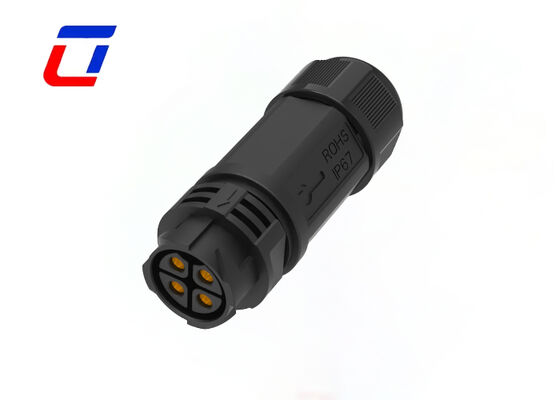

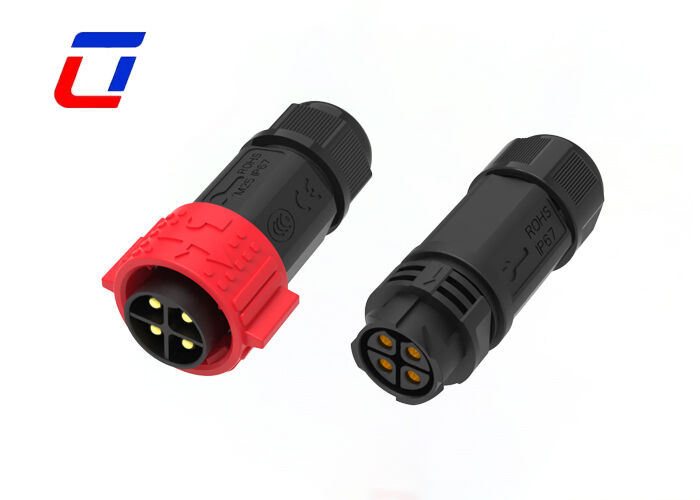

Waterproof Electrical 500V M25 4 Pin Waterproof Push Lock Connectors
Quick Details of IP67 Waterproof connector
Main Feature
| Electrical Parameters | |
| Number of Poles | 4Pin waterproof connector |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 30A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Production Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q2:What payment methods do you accept?
A2: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
Q3:Do you accept other payment currencies besides USD?
A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
