산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs/TUV/UL |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1.플라스틱 백 ;2.통 ;3.고객의 요구조건에 따라서 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T, D/P, L/C, D/A, 서부 동맹, MoneyGram |
| 공급 능력: | 매달 100000 쌍 |
| Current rating: | 5A | Connector type: | Quick connector |
|---|---|---|---|
| Pin: | 16Pin | Rated voltage: | 300V |
| Material: | Nylon | Operating temperature: | -40℃-+105℃ |
| 강조하다: | IP67 waterproof circular connector,M19 industrial male female connector,500V waterproof industrial connector |
||

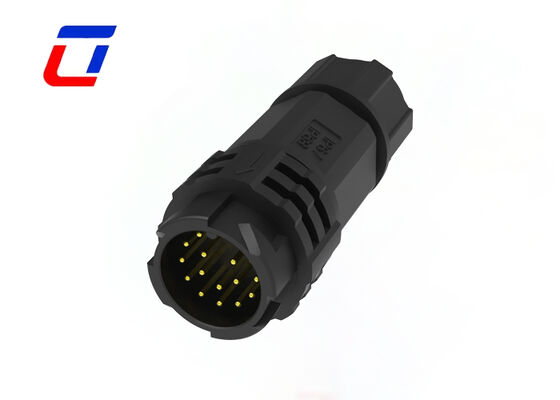

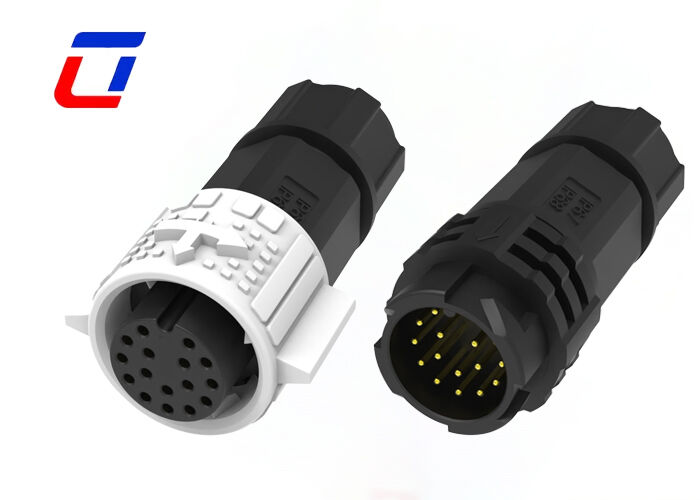

M19 IP67 Circular Connectors 500V Male To Female Industrial Connector
Quick Description
IP67 Waterproof & Dustproof Protection: Built with precision rubber gaskets and a secure threaded locking mechanism, this connector achieves the IP67 ingress protection rating. It effectively blocks dust, splashing water, ensuring stable operation in harsh environments such as factories, construction sites, and outdoor equipment stations.
Industrial-Grade Durability: The connector’s housing is crafted from high-strength, corrosion-resistant PA66 engineering plastic, while the contact pins adopt gold-plated copper alloy for low contact resistance and anti-oxidation performance.
This model connectors is specialized for various Signal applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Main Features
Application industries
| Electrical Parameters | |
| Number of Poles | 16Pin |
| Current Rating | 5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: What payment methods do you accept?
A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
