| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs/TUV/UL |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1.플라스틱 백 ;2.통 ;3.고객의 요구조건에 따라서 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T, D/P, L/C, D/A, 서부 동맹, MoneyGram |
| 공급 능력: | 매달 100000 쌍 |
| Pin: | 14Pin | Gender: | Male to Female |
|---|---|---|---|
| Current rating: | 5A | Material: | Nylon |
| Color: | White Blue Red Black Yellow | Protection level: | IP67 |
| 강조하다: | 14 pin waterproof cable connector,M19 waterproof data connector,300V waterproof male female connector |
||

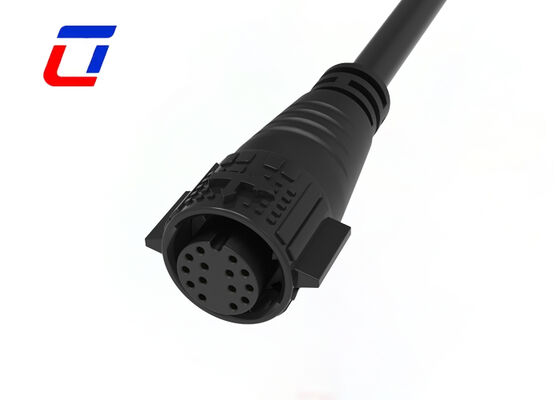

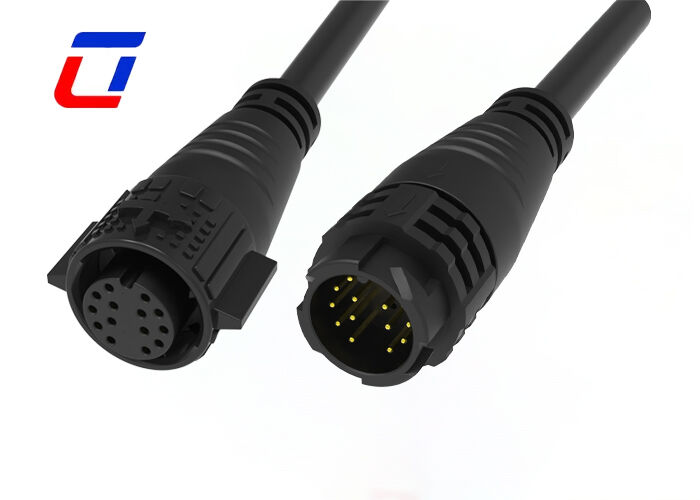

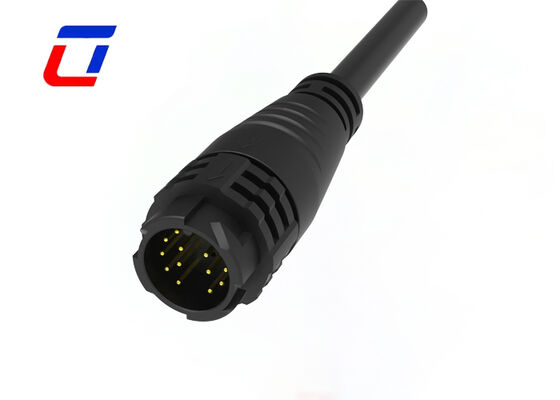

14 Pin Male Female Connector M19 300V Cable Connectors Waterproof
Quick Description
Superior Waterproof Performance: Adopting advanced sealing technology and a rugged housing structure, the connector achieves an excellent waterproof rating (IP67 or higher, depending on specific model). It effectively resists water immersion, moisture, and dust intrusion, ensuring stable operation in outdoor, underground, or damp environments such as outdoor lighting systems, marine equipment, and industrial washing areas.
Stable Electrical Conductivity: Equipped with 14 precision-engineered pins, the connector ensures low contact resistance and consistent electrical performance. With a rated voltage of 300V, it is suitable for a wide range of low-voltage applications, providing reliable power and signal transmission without signal loss or electrical interference.
This model connectors is specialized for various Power Signal applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
In This model connector, Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
Main Features
| Electrical Parameters | |
| Number of Poles | 12Pin |
| Current Rating | 5 Amax. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Application industries
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: Can I pay after receiving the goods?
A:For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
