| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs/TUV/UL |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1.플라스틱 백 ;2.통 ;3.고객의 요구조건에 따라서 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T, D/P, L/C, D/A, 서부 동맹, MoneyGram |
| 공급 능력: | 매달 100000 쌍 |
| 현재 등급: | 10A | 정격전압: | 300V |
|---|---|---|---|
| 핀: | 5 핀 | 성별: | 남성에서 여성 |
| 난연성 등급: | UL94-V0 | 재료: | 나일론 |
| 강조하다: | 5 pin M19 waterproof connector,PA66 panel mount connector,300V waterproof circular connector |
||

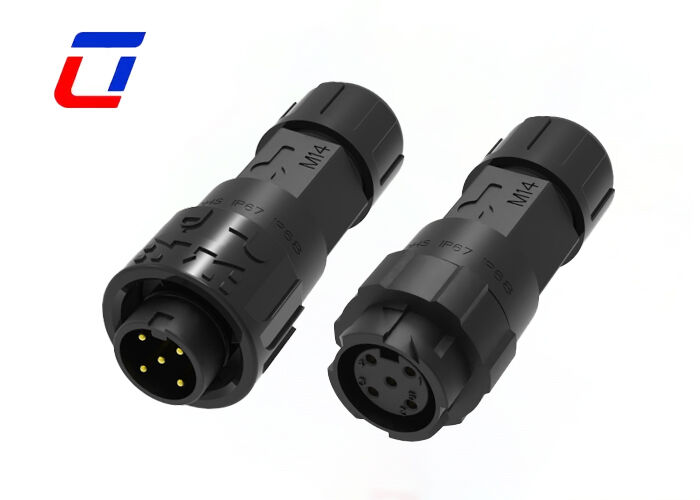

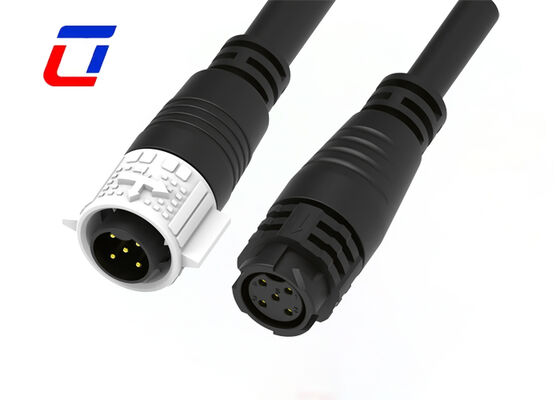

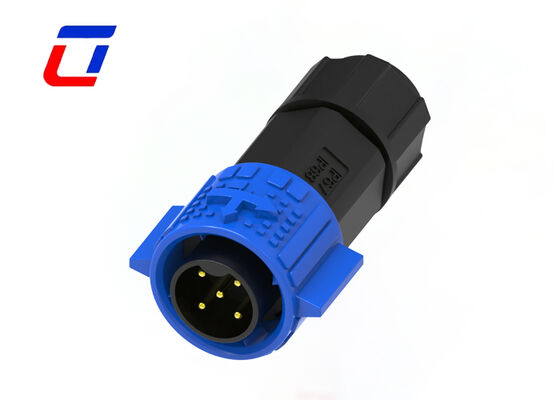

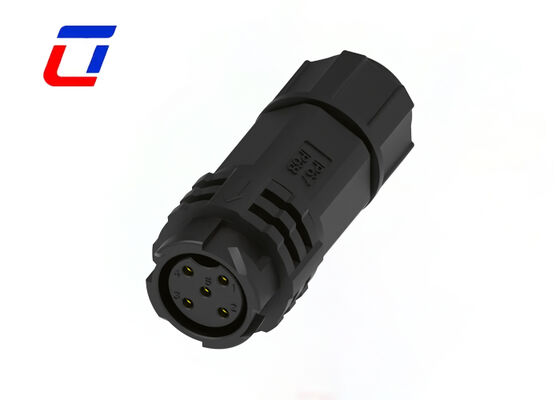

5 Pin Circular M19 PA66 300V Panel Mount Waterproof Connector
Main Features
Quick Description
| Electrical Parameters | |
| Number of Poles | 3Pin |
| Current Rating | 20A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Application industries
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
