산업용 방수 연결 장치 전문 공급자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs/TUV/UL |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1.플라스틱 백 ;2.통 ;3.고객의 요구조건에 따라서 |
| 배달 시간: | 3~6근무일 |
| 지불 조건: | T/T, D/P, L/C, D/A, 서부 동맹, MoneyGram |
| 공급 능력: | 매달 100000 쌍 |
| 성별: | 남성에서 여성 | 색상: | 흰색 파란색 빨간색 검정색 노란색 |
|---|---|---|---|
| 재료: | PA66 및 황동 주석 도금 | 현재 등급: | 20A |
| 정격전압: | 300V | 난연성 등급: | UL94-V0 |
| 강조하다: | M19 waterproof cable connector,3 pin quick lock connector,300V industrial waterproof connector |
||

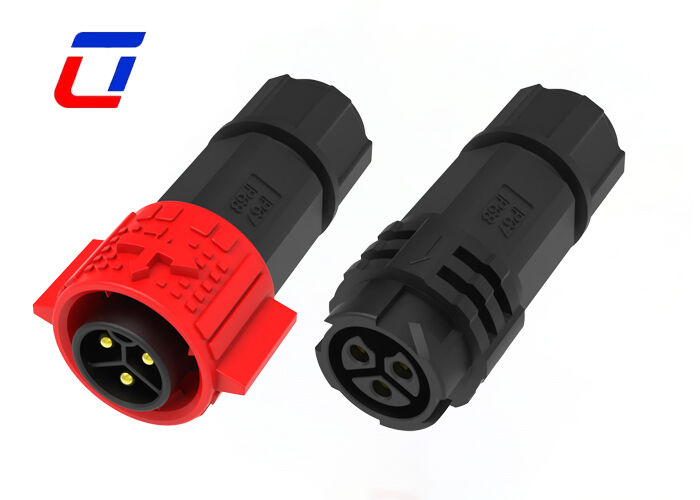

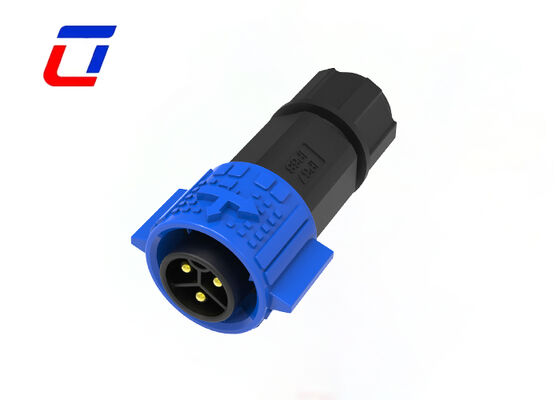

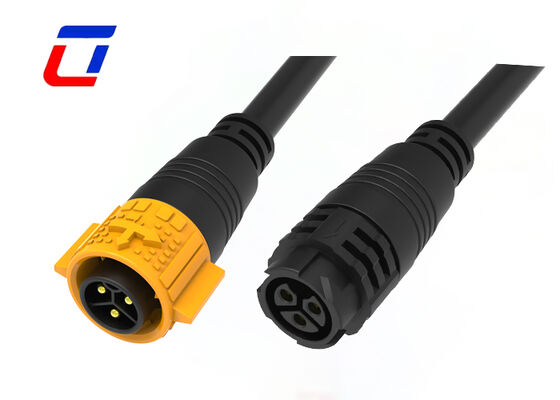

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Industrial Production
Main Features
Quick Description
| Electrical Parameters | |
| Number of Poles | 3+2pin waterproof wire connector |
| Current Rating | 15+5A max. |
| Voltage Rating | 300VAC max5 |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: What shipping methods do you offer? How long is the delivery time?
A:We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.
2. Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
3. Q: When you ship my order?
A:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
4. Q: Can I have custom label?
A:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
