| 원래 장소: | 중국 |
| 브랜드 이름: | Ulinkcon |
| 인증: | CE/Rohs |
| 모델 번호: | M19 |
| 최소 주문 수량: | 협상 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 |
| 배달 시간: | 5~8일 |
| 지불 조건: | T/T, D/A, D/P, 머니그램, L/C |
| 공급 능력: | 매달 100000 쌍 |
| 핀 수: | 2개 핀 | 현재의: | 20A |
|---|---|---|---|
| 커넥터 유형: | 자동 잠금 남성 대 여성 | 색상: | 검정색 파란색 흰색 빨간색 노란색 |
| 재료: | PA66 및 구리 합금 | 와이어 크기: | 14~20AWG |
| 전압 정격: | 300V | 난연성 등급: | UL94-V0 |
| 강조하다: | M19 2Pin waterproof power connector,20A high current push lock connector,waterproof power connector with push lock |
||

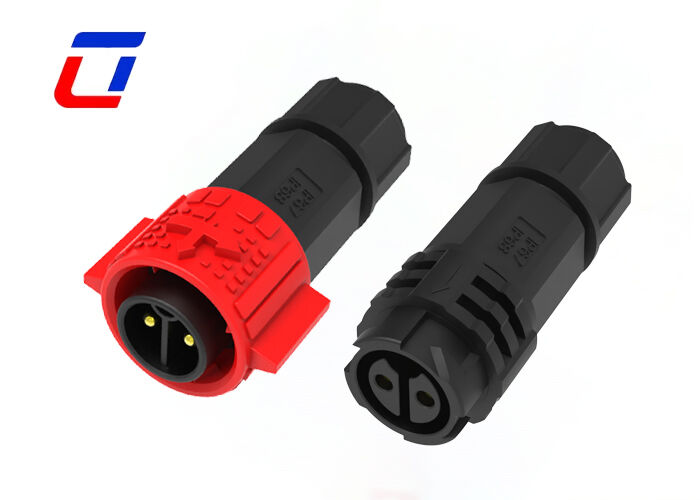

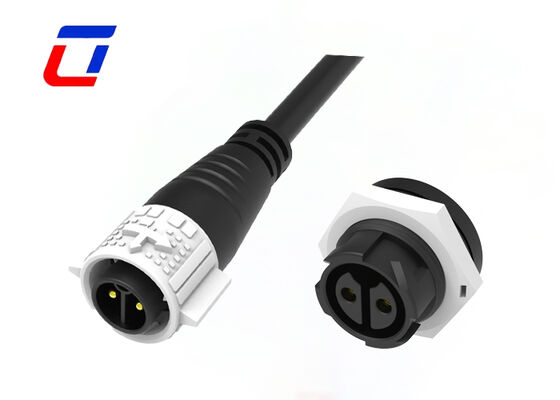

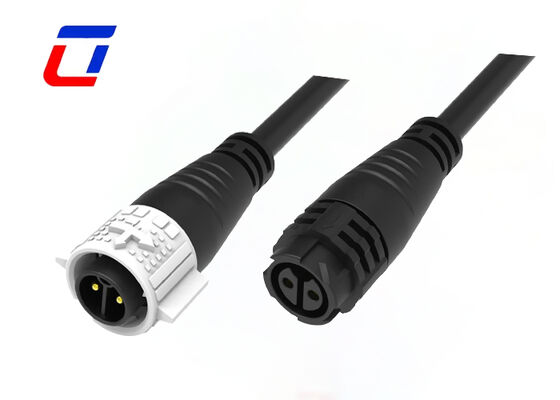

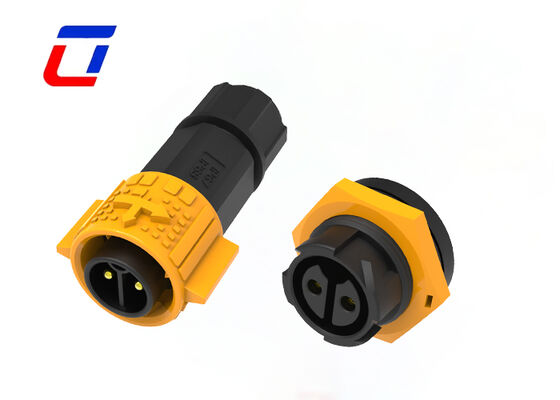

M19 2PIN 20A Push Lock Power Waterproof Circular Connectors For Wires
Main Features
Quick Details of 2Pin Connector Male female
| Product Type Features | |
| Connector System | Cable-to-cable |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, socket |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Electrical Characteristics | |
| Number of Poles | 2 |
| Current Rating | 20A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Body Features | |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Usage Conditions | |
| Operating Temperature Range (°C) | -40 ~105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Operation/Application | |
| Durability Rating (Cycles) | 250, 251 |
| Industry Standards | |
| UL Flammability Rating | UL 94V-0 |
Application industries
More Technical Details
FAQ
Q1:Do you support product customization?
A1:Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
Q2:Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3:Is there a discount for large-quantity orders?
A3: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
