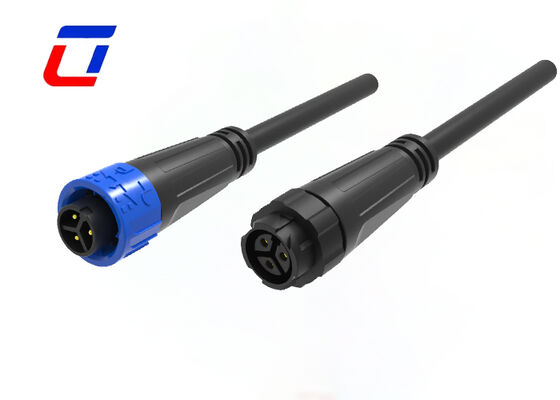

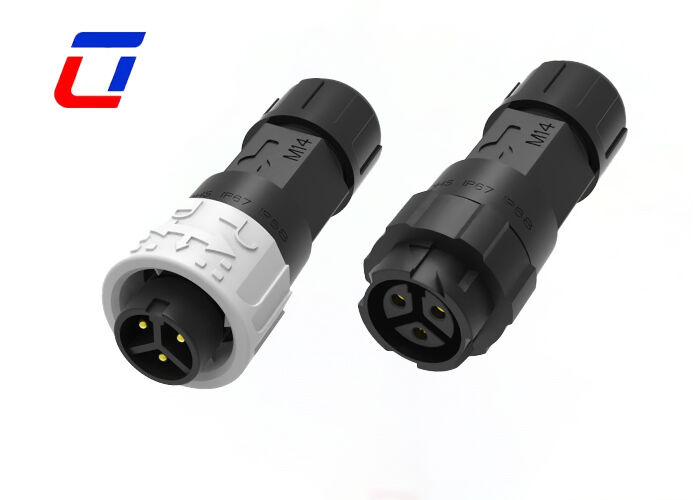

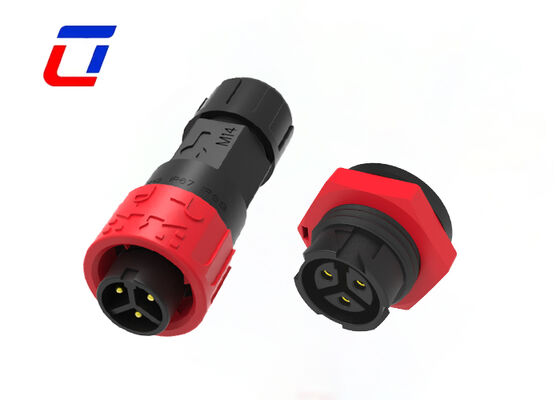

M16 3 Pin 300V Waterproof Power Connector Male To Female

M16 3 Pin 300V Waterproof Power Connector Male To Female

  • M16 3 Pin 300V Waterproof Power Connector Male To Female
  • M16 3 Pin 300V Waterproof Power Connector Male To Female
  • M16 3 Pin 300V Waterproof Power Connector Male To Female
  • M16 3 Pin 300V Waterproof Power Connector Male To Female
M16 3 Pin 300V Waterproof Power Connector Male To Female
제품 상세 정보:
원래 장소: 중국
브랜드 이름: Ulinkcon
인증: CE/Rohs
모델 번호: M16
결제 및 배송 조건:
최소 주문 수량: 협상
가격: 협상 가능
포장 세부 사항: 고품질 수출 상자
배달 시간: 영업일 기준 3~6일
지불 조건: T/T, D/A, D/P, 머니그램, L/C
공급 능력: 매달 100000 쌍
접촉
상세 제품 설명
핀 수: 3개 핀 현재의: 10A 최대
정격전압: 300V 방수 등급: IP67
케이블 게이그: 20-18AWG 색상: 빨간색 파란색 흰색 검정색 노란색
강조하다:

M16 waterproof power connector

,

3 pin waterproof circular connector

,

300V waterproof male to female connector

10A 3Pin Quick Release Waterproof Circular Connector.



Description of Industrial Waterproof Circular Connector



Steady 10A current handling for medium-load devices, ensuring long-term stable performance.
3Pin configuration simplifies wiring while enabling precise power transmission.

High-grade durable housing resists corrosion and impact, extending service life.
Secure locking mechanism prevents accidental disconnection, enhancing operational safety.
Broad compatibility with standard wiring; RoHS/CE certified for international quality compliance.



Main Feature



  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin,2+4Pin,7Pin,8Pin, available
  • Field assembly version:both wire to wire and wire to board options
  • High current rated waterproof connector good choice up to 10A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome



Electrical Parameters
Number of Poles 3Pin waterproof connector
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



Application industries



  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Production Dimension

M16 3 Pin 300V Waterproof Power Connector Male To Female 0





More Technical Details





M16 3 Pin 300V Waterproof Power Connector Male To Female 1



FAQ



Q1:How do you guarantee product quality?

A1:We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.

Q2:Can I pay after receiving the goods?

A2: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q3:How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
